Description

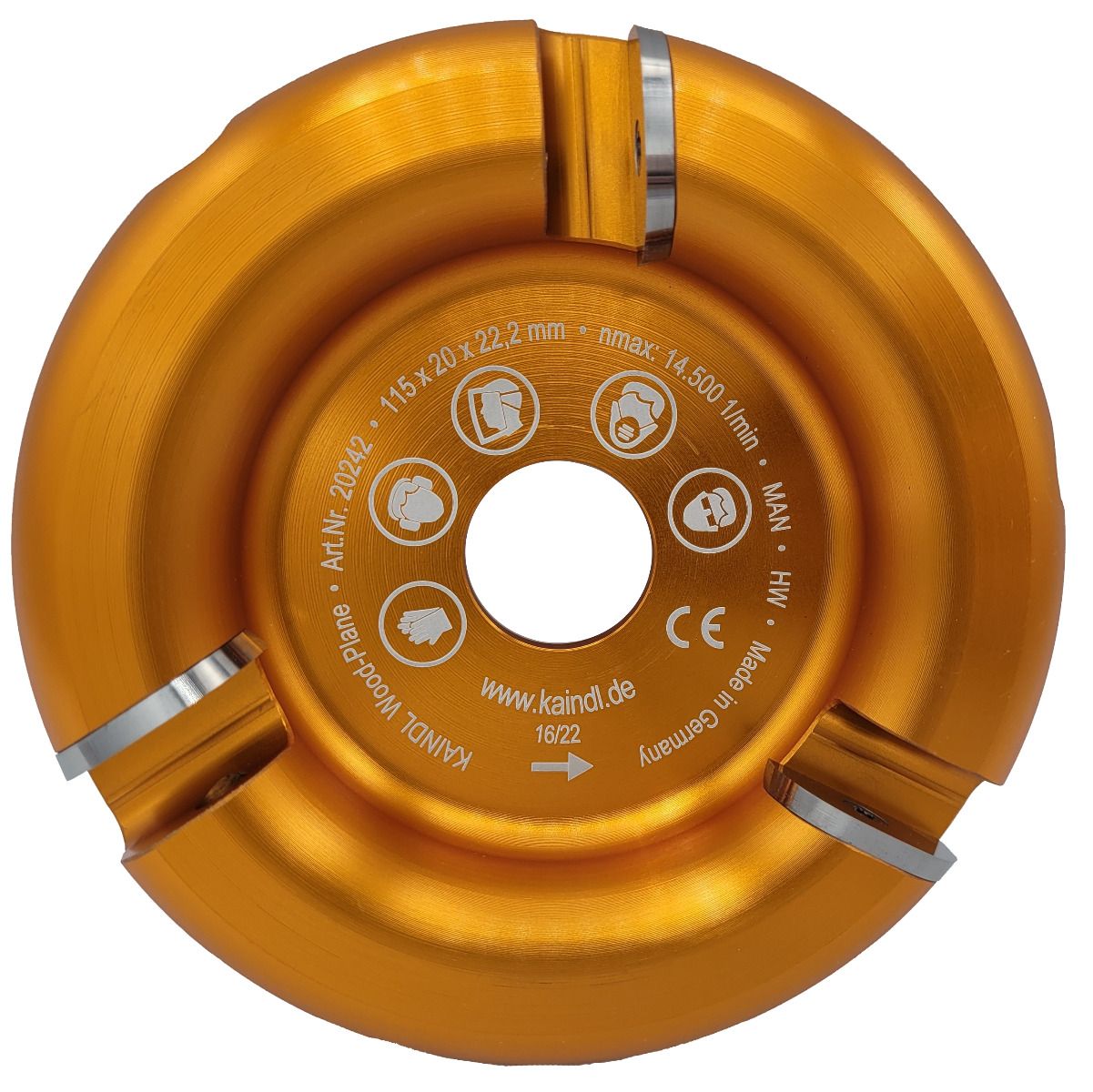

KAINDL WOOD-PLANE – Professional Milling Disc for Wood and Wood Materials (115 x 20 x 22.2 mm)

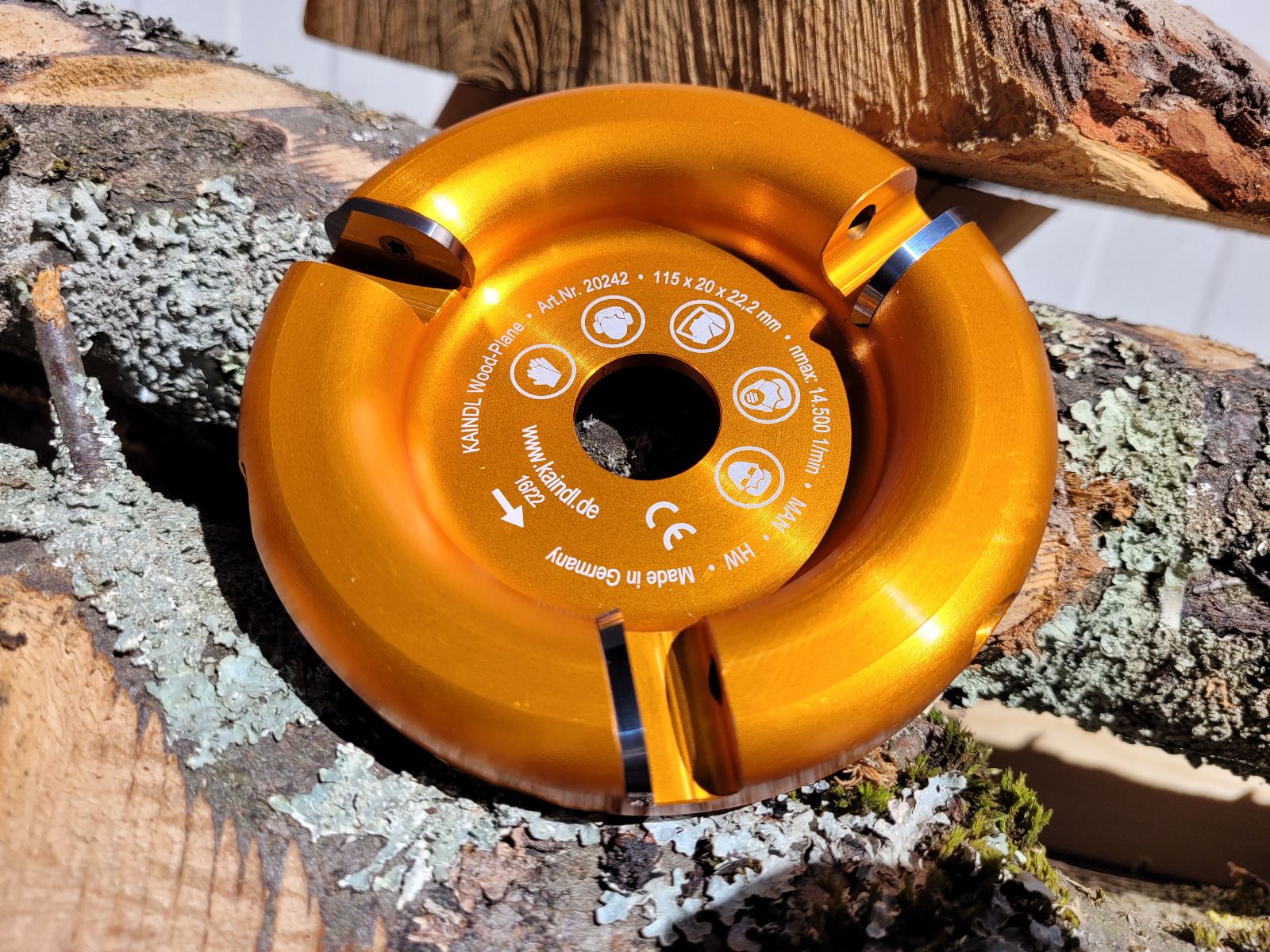

The Kaindl WOOD-PLANE Milling Disc is a precision-engineered tool designed for manual carving, shaping, and surface milling of soft and hardwoods. Machined from a single block of high-strength CNC aluminum, it guarantees exceptional balance, long life, and maximum control when used with angle grinders (Ø115–125 mm).

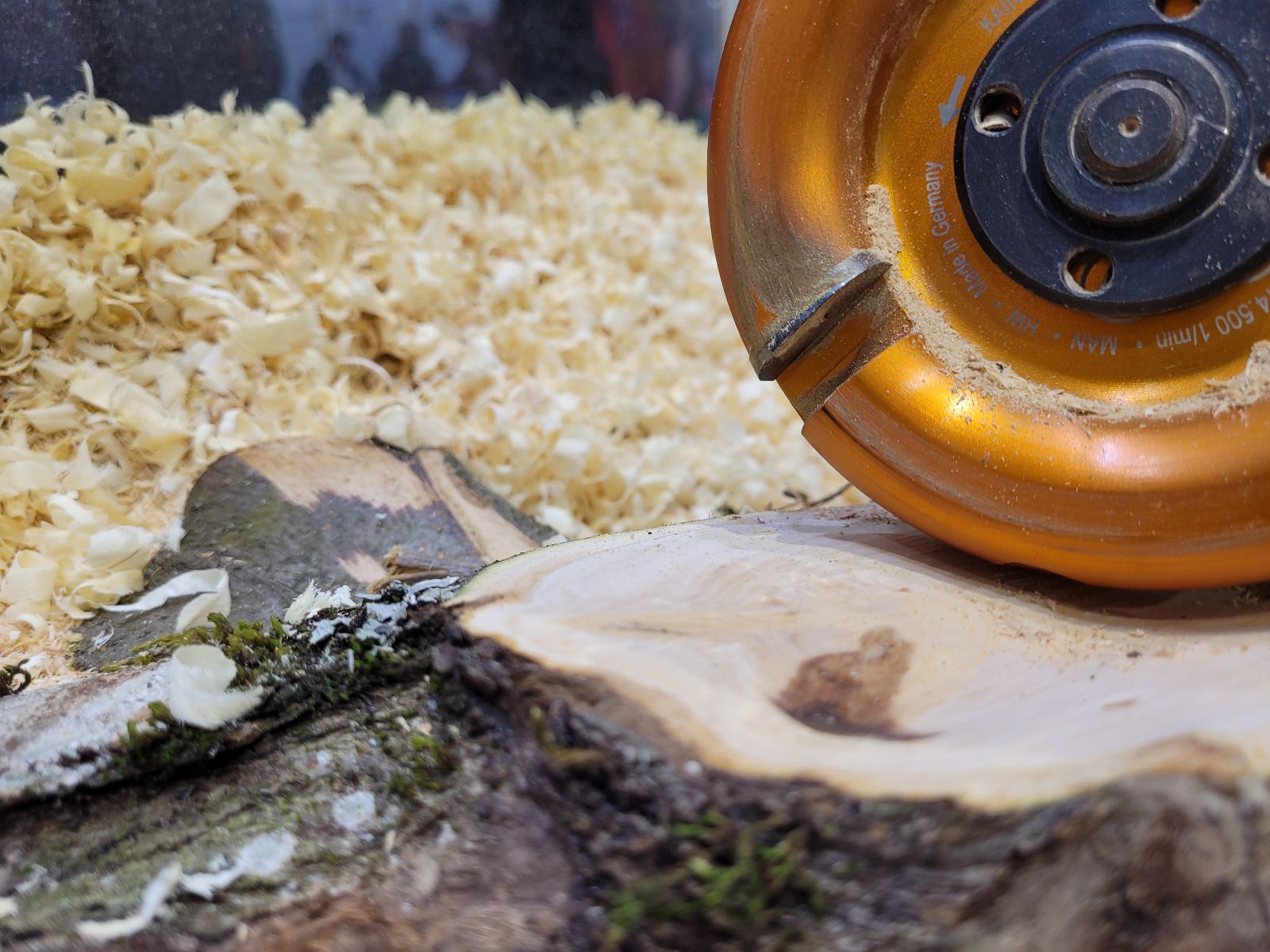

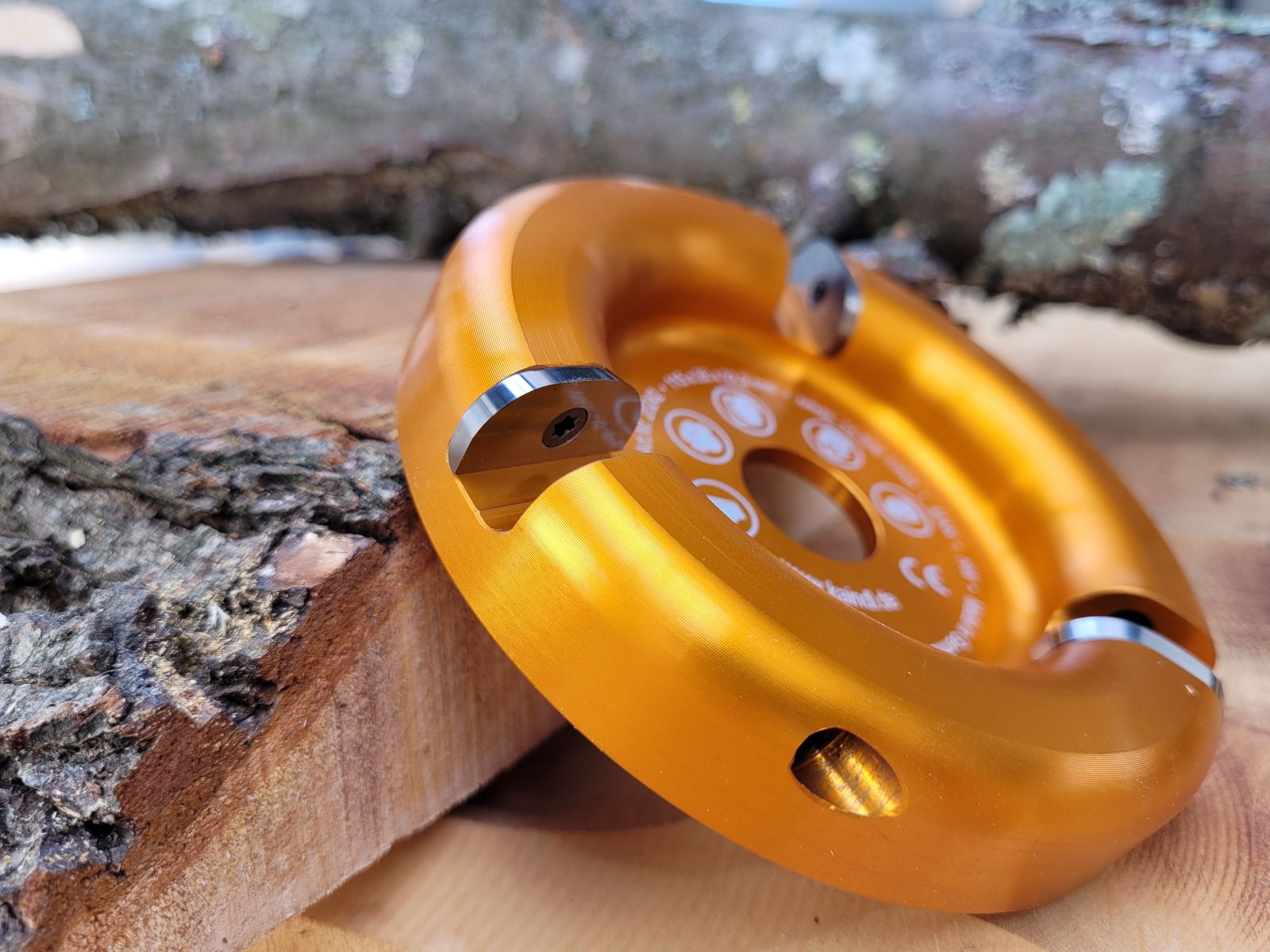

Equipped with three replaceable carbide (HW) cutting inserts, the WOOD-PLANE allows for smooth and fast surface removal, making it ideal for both professional woodworking and creative applications such as relief carving, bark removal, and sculpture shaping.

Download Data Sheet-Kaindl Wood Plane Norway – Professional Milling Disc 115mm | RAM SVEIS OG BEMANNING AS

Key Features

• High-quality German engineering – precision CNC-machined aluminum body

• Replaceable carbide blades (HW) – easily resharpened for extended tool life

• 3-insert design ensures consistent, controlled chip removal

• Low-kickback operation for safe and stable manual use

• Perfect for woodworkers, sculptors, and creative craftsmen

• Max speed: 14,500 rpm

• Dimensions: Ø115 x 20 x 22.2 mm

• Compatible tools: all angle grinders 115–125 mm with guard

• Made in Germany – Kaindl Schleiftechnik GmbH

Applications

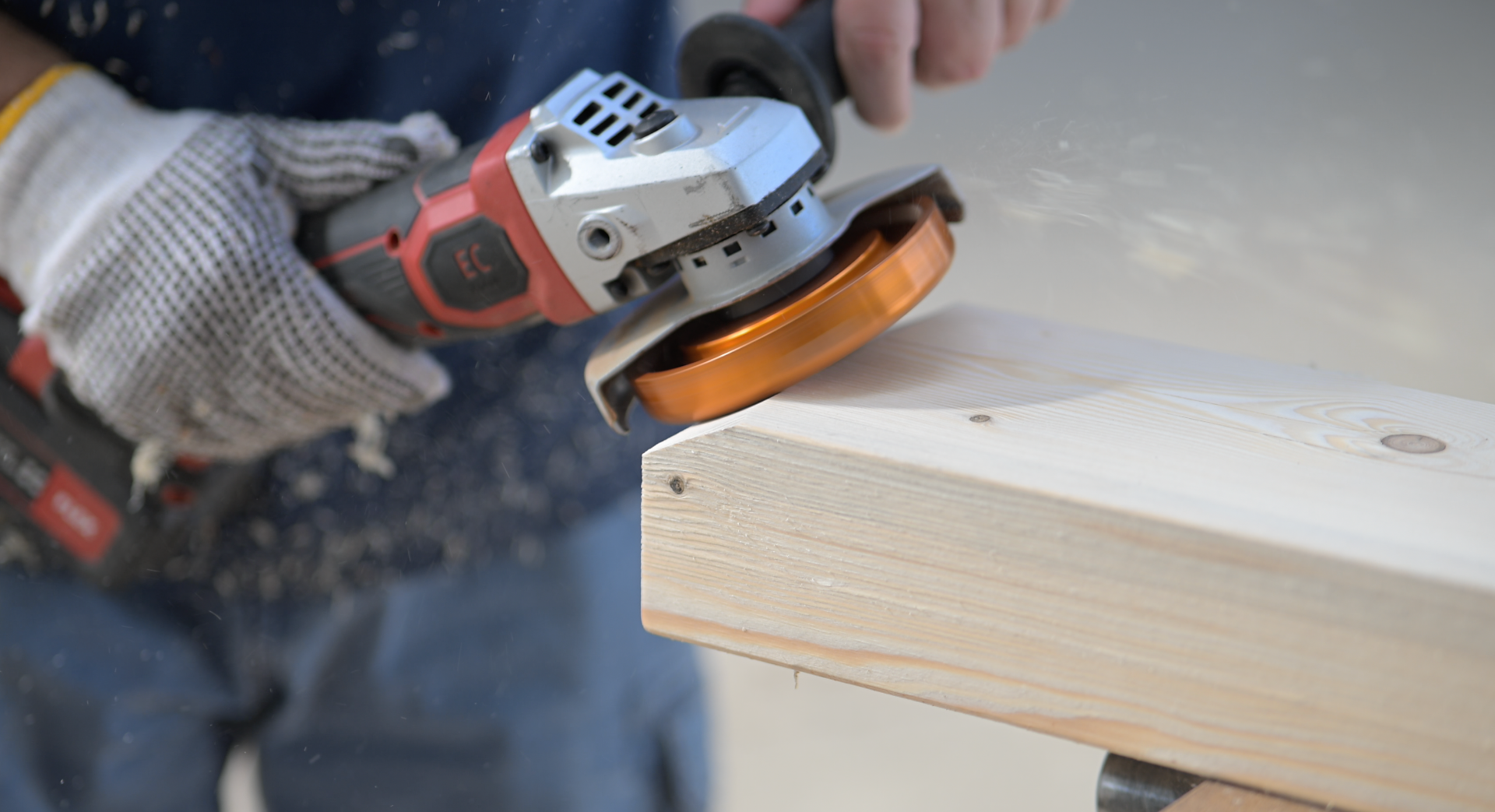

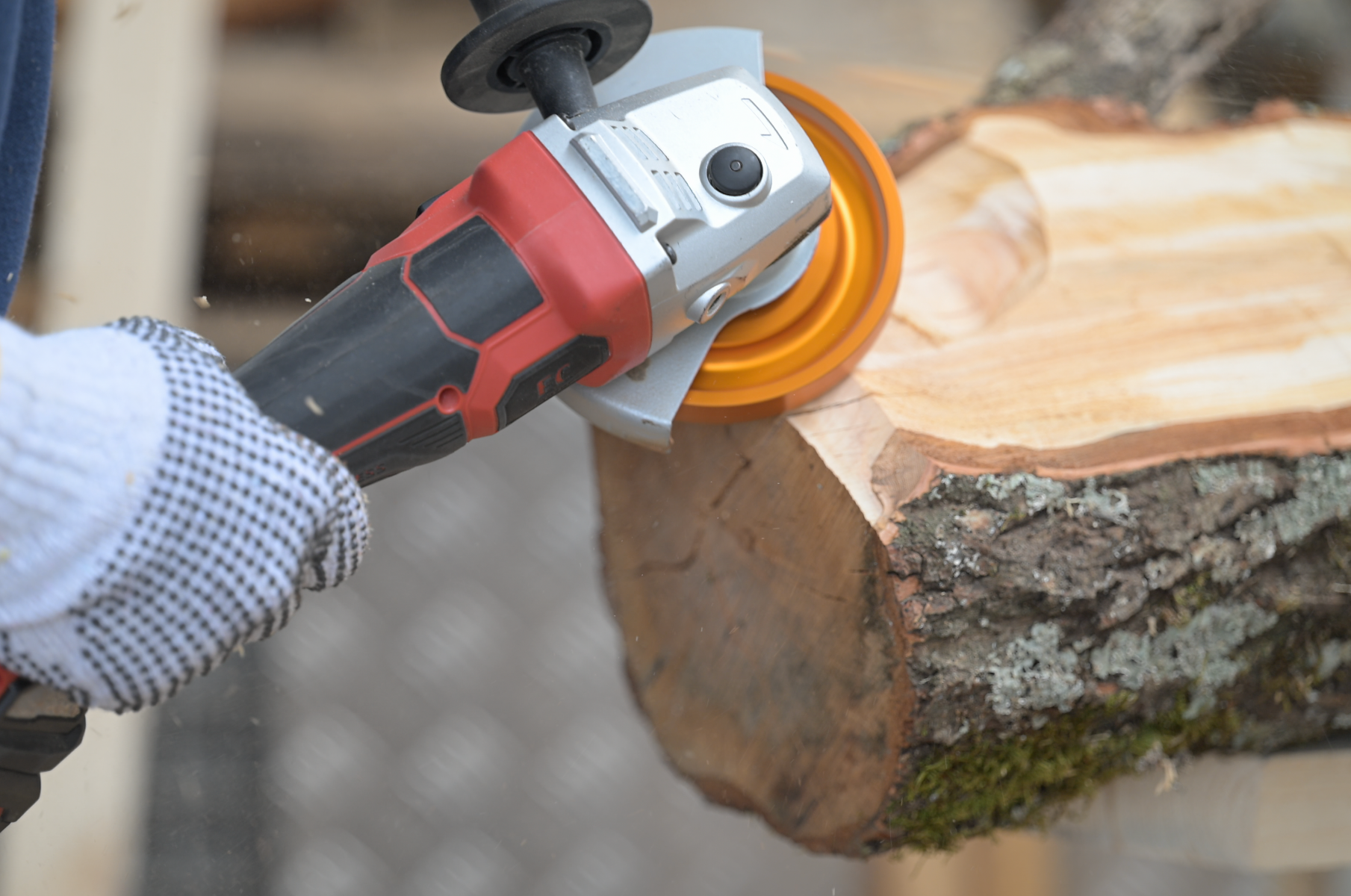

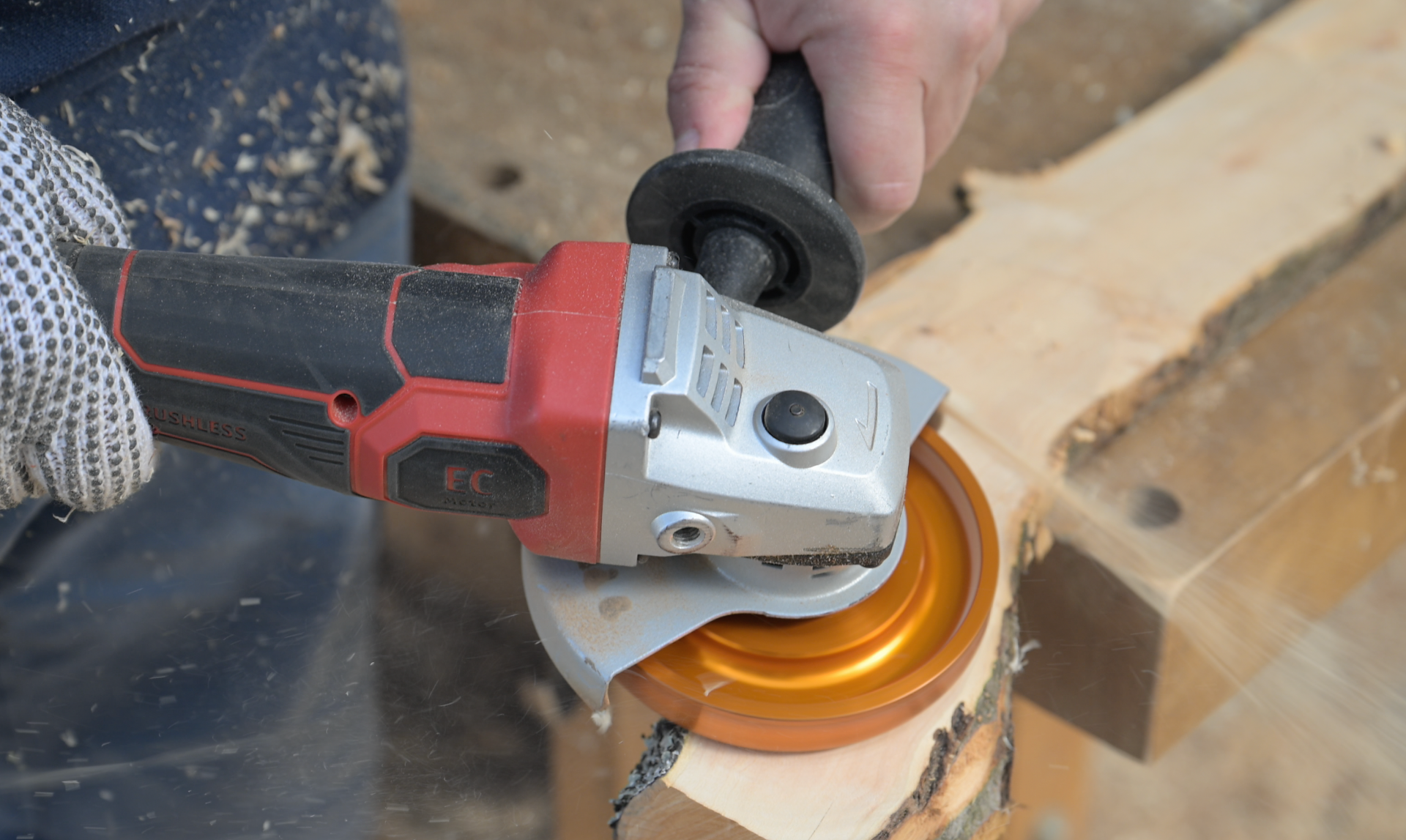

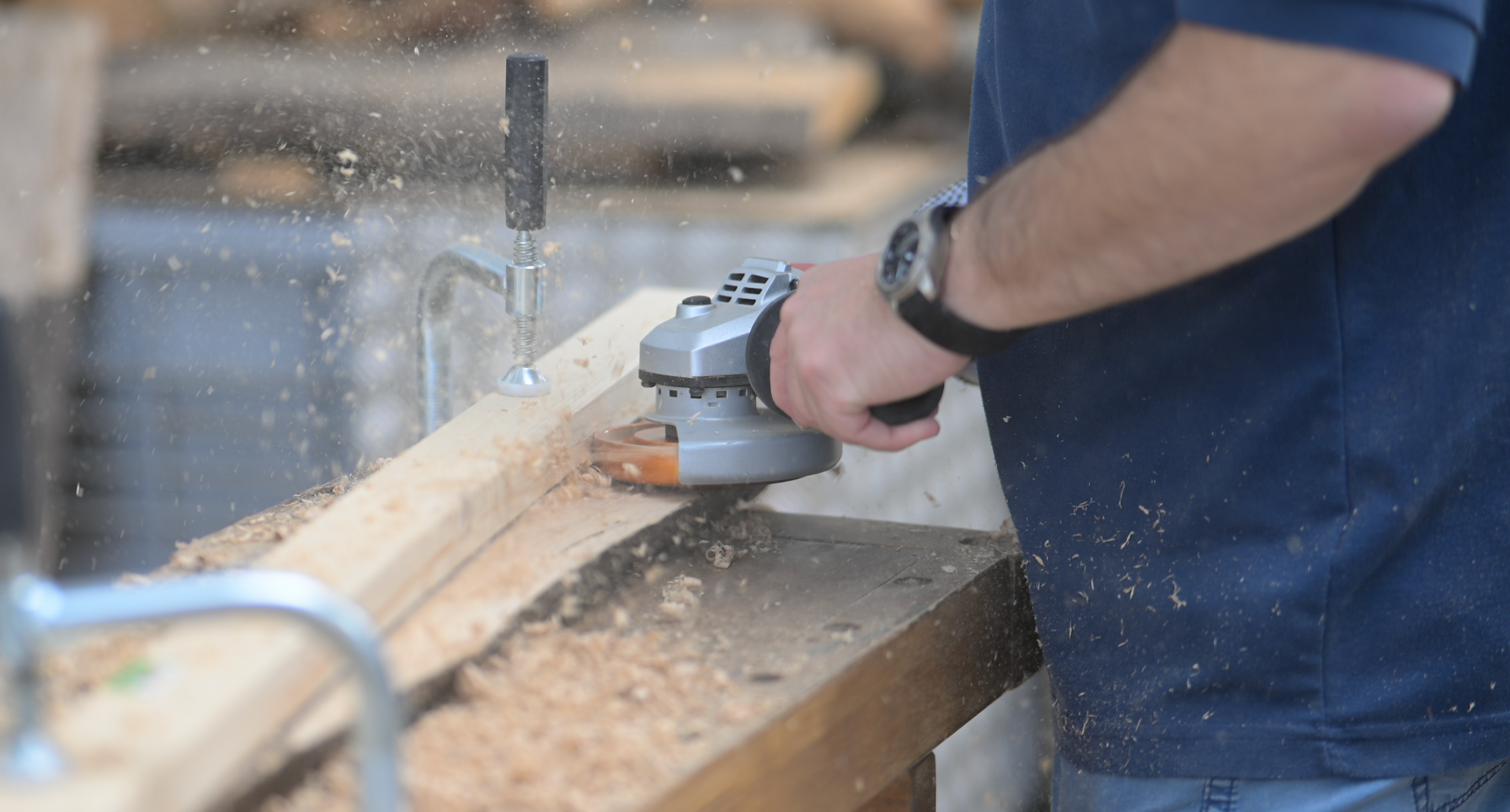

• Fast surface milling on soft and hardwood

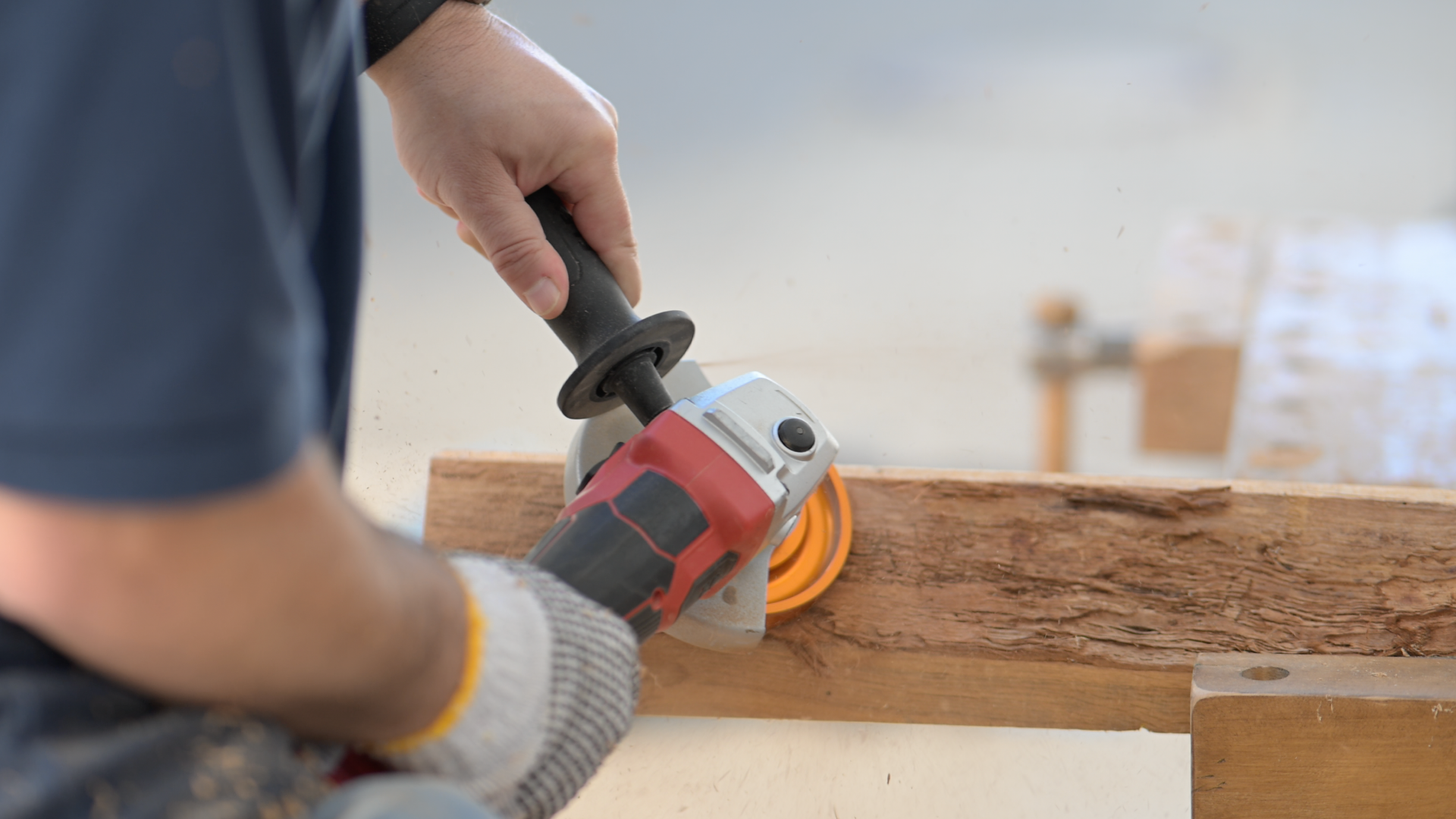

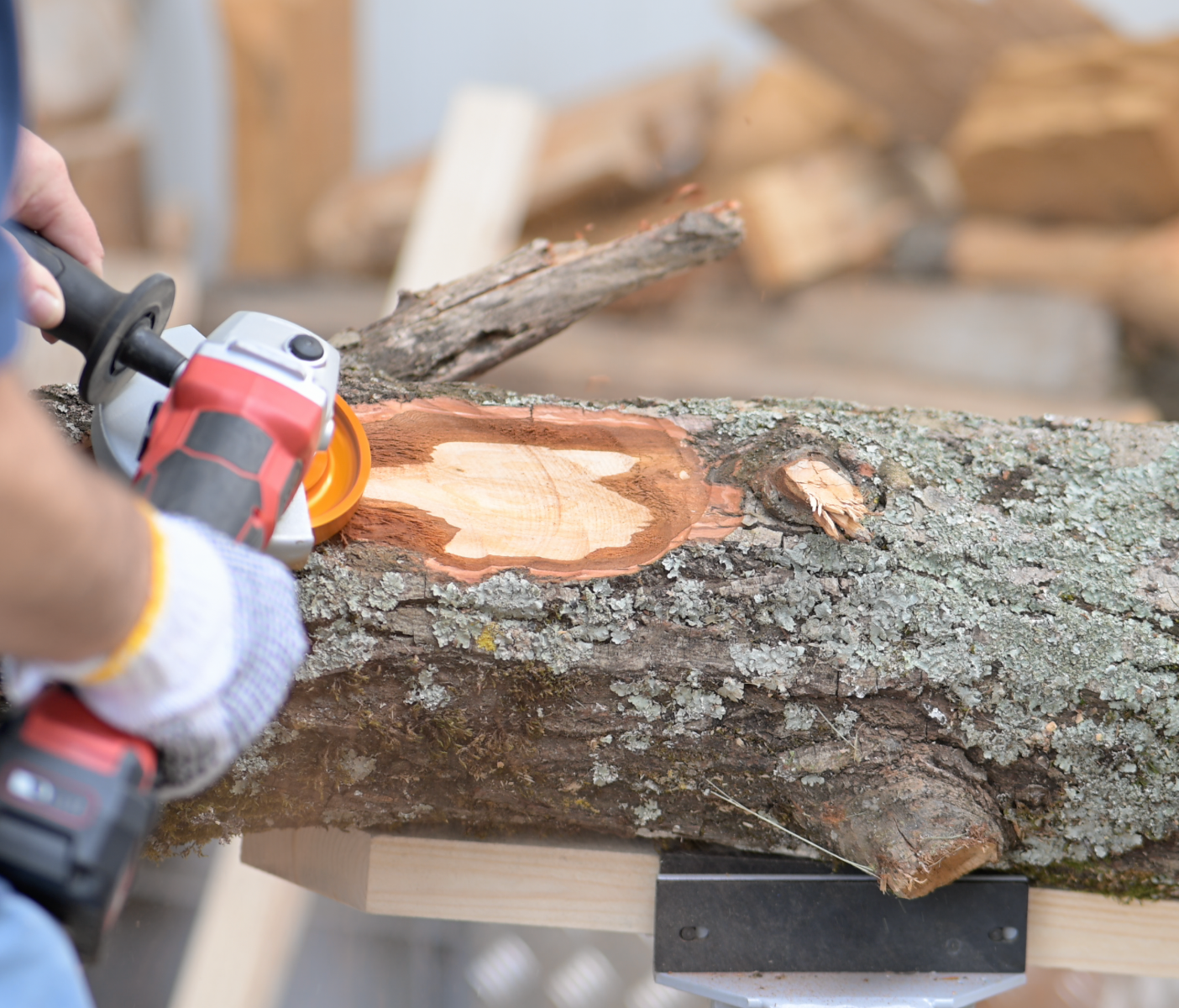

• Bark and sapwood removal from logs and branches

• Creative carving: reliefs, textures, shapes, and contours

• Ideal for playground construction, sculpture work, and landscaping

• Suitable for professional woodworking and craft environments

Technical Specifications

Safety Instructions

To ensure safe and professional use, always follow these rules:

• Use respiratory, eye, hearing, face, and hand protection (EN 166 / EN 388 / EN 352 / EN ISO 20345).

• Always secure the workpiece firmly before starting.

• Operate only in well-ventilated, clean, and well-lit areas.

• Always disconnect the angle grinder from the power supply before mounting or replacing the disc.

• Check that the grinder’s rotation direction matches the arrow on the disc.

• Use only the original fastening screws (Art. 19071) and carbide inserts (Art. 20259).

• Do not brake the disc on the workpiece; this can damage the carbide edges.

• Perform a sound test before each use – a clear bell-like tone confirms the disc is free of internal cracks.

• Never use the Wood-Plane for cutting or in explosive environments.

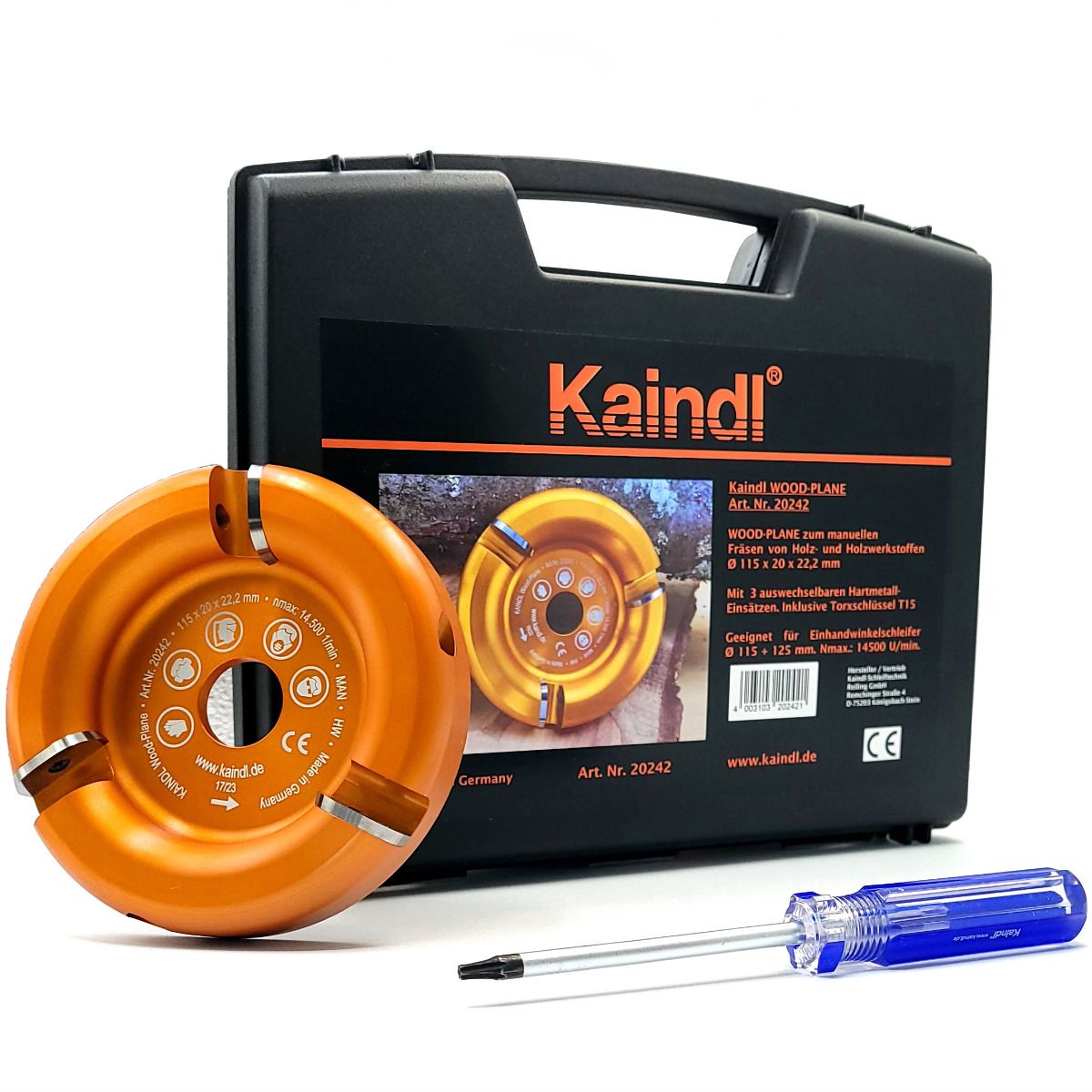

Included in the Set

• 1x Wood-Plane Milling Disc (115 mm)

• 3x Replaceable Carbide Inserts (HW)

• 1x Torx T15 screwdriver

• 1x Carrying Case

• 1x User Manual (EN/DE)

Exclusive Distribution

This product is exclusively distributed in Norway by:
RAM SVEIS OG BEMANNING AS
📍 Linnegrøvan 27, Søgne, Kristiansand
📞 +47 468 43 758 | +47 968 87 890
📩 post@rammultiinvest.no
🌐 www.rammultiinvest.no

FAQ

Q1: Is the Kaindl WOOD-PLANE suitable for all types of wood?
Yes, it is designed for both softwood and hardwood, delivering excellent surface control and chip removal.

Q2: Can the carbide inserts be replaced or sharpened?
Absolutely. The HW inserts are replaceable and can be resharpened using Kaindl sharpening stones (Art. 15894 or 19346).

Q3: What angle grinders are compatible?
Any 115 mm or 125 mm angle grinder equipped with a guard and a standard M14 spindle.

Q4: What safety gear is required?
Always use full protective gear: gloves, goggles, ear protection, face shield, and P1/FFP1 dust mask.

Q5: Can I use the disc for cutting?
No. The WOOD-PLANE is for surface milling only — not for cutting or slotting.
