Central Industrial Filtration System for Clean Air in Large-Scale Operations

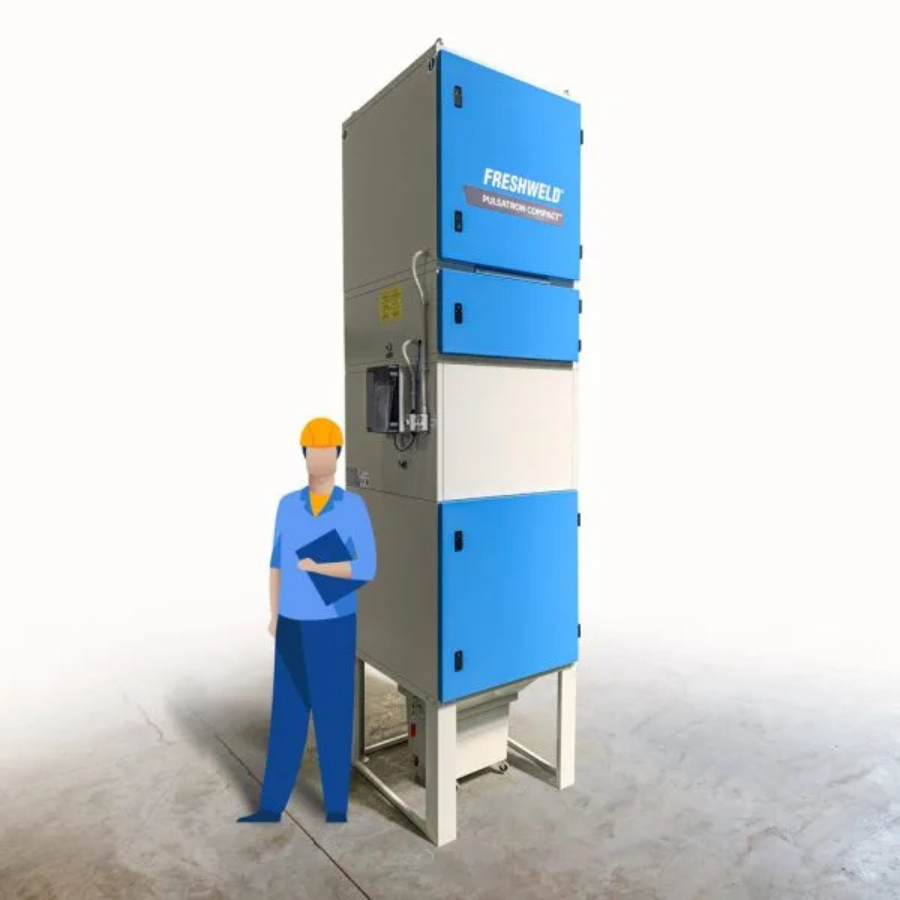

The PulsatronCompact central industrial filtration system is designed to ensure clean air in large production environments. It removes dust and fumes from welding, plasma cutting, and surface treatment processes.
Designed for Demanding Industrial Use

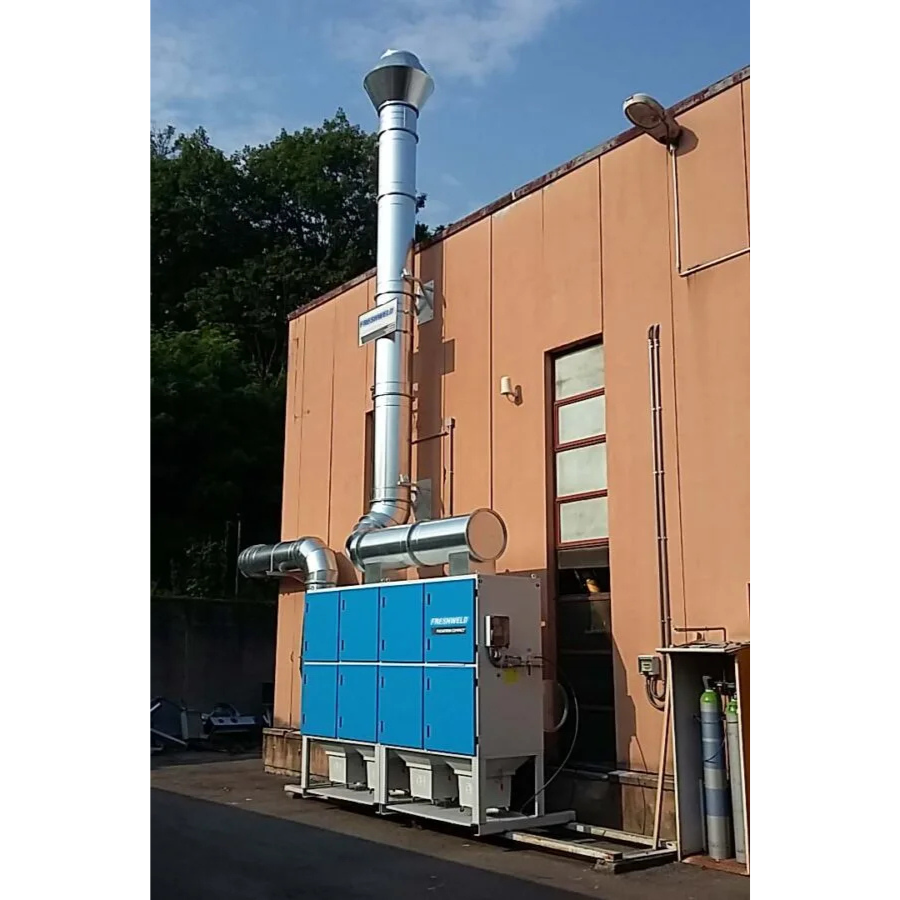

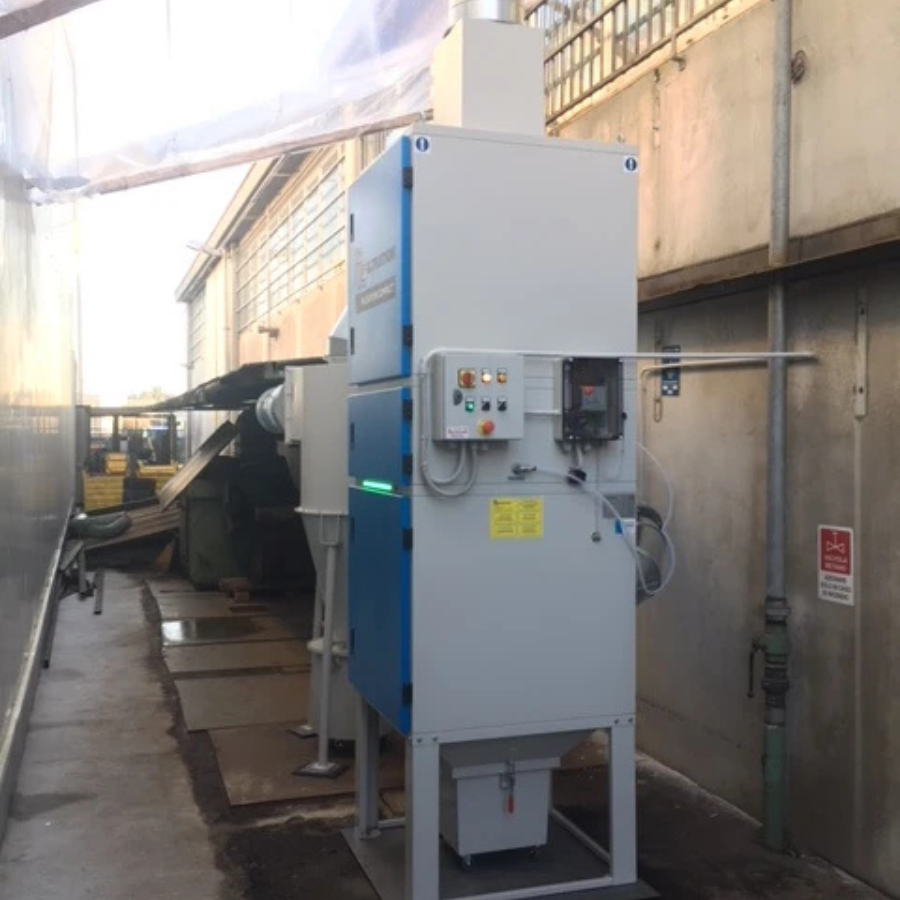

This system is modular and easy to adapt. It supports airflow from 1500 to 14,000 m³/h. You can use it in centralized systems or as a standalone unit. It includes a Jet-Pulse filter cleaning function, which keeps the unit running with little maintenance.
In addition, you can upgrade the unit with useful options. These include a dust discharge system, LED pollution indicator, and mechanical shaking. These features help improve performance and reduce manual work.
Available Variants of PulsatronCompact
| FW Code | Airflow (m³/h) | Pressure (Pa) | Motor (kW) | Surface Area (m²) | Filtration Speed | Inlet | Outlet | W (mm) | L (mm) | H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 511PCTV003 | 1500–2500 | 2700–2100 | 3 | 40 | 1.04 | Ø250 | Ø300 | 930 | 850 | 2815 |
| 511PCTV004 | 2000–4000 | 3200–2100 | 4 | 40 | 1.66 | Ø250 | Ø300 | 930 | 850 | 2815 |
| 511PCTV005 | 5000–5800 | 1800–1500 | 4 | 80 | 1.21 | Ø320 | Ø300 | 930 | 850 | 2815 |
| 511PCTV006 | 4500–5500 | 3500–3000 | 7.5 | 80 | 1.14 | 2 × Ø250 | 405 × 362 | 930 | 1700 | 2425 |
| 511PCTV007 | 6000–7000 | 2000–1650 | 5.5 | 80 | 1.45 | 2 × Ø250 | 405 × 362 | 930 | 1700 | 2425 |
| 511PCTV008 | 7000–8000 | 2800–2650 | 7.5 | 80 | 1.66 | 2 × Ø250 | 405 × 362 | 930 | 1700 | 2425 |
| 511PCTV009 | 8000–9000 | 2650–2150 | 7.5 | 120 | 1.25 | 3 × Ø250 | 2 × 405 × 362 | 930 | 2550 | 2425 |
| 511PCTV010 | 9000–11000 | 2450–2200 | 2 × 5.5 | 160 | 1.14 | 4 × Ø250 | 2 × 405 × 362 | 930 | 3400 | 2425 |
| 511PCTV011 | 11000–14000 | 3050–2800 | 2 × 7.5 | 160 | 1.45 | 4 × Ø250 | 2 × 405 × 362 | 930 | 3400 | 2425 |
Key Features at a Glance
Airflow range: 1500–14,000 m³/h
Jet-Pulse cleaning system

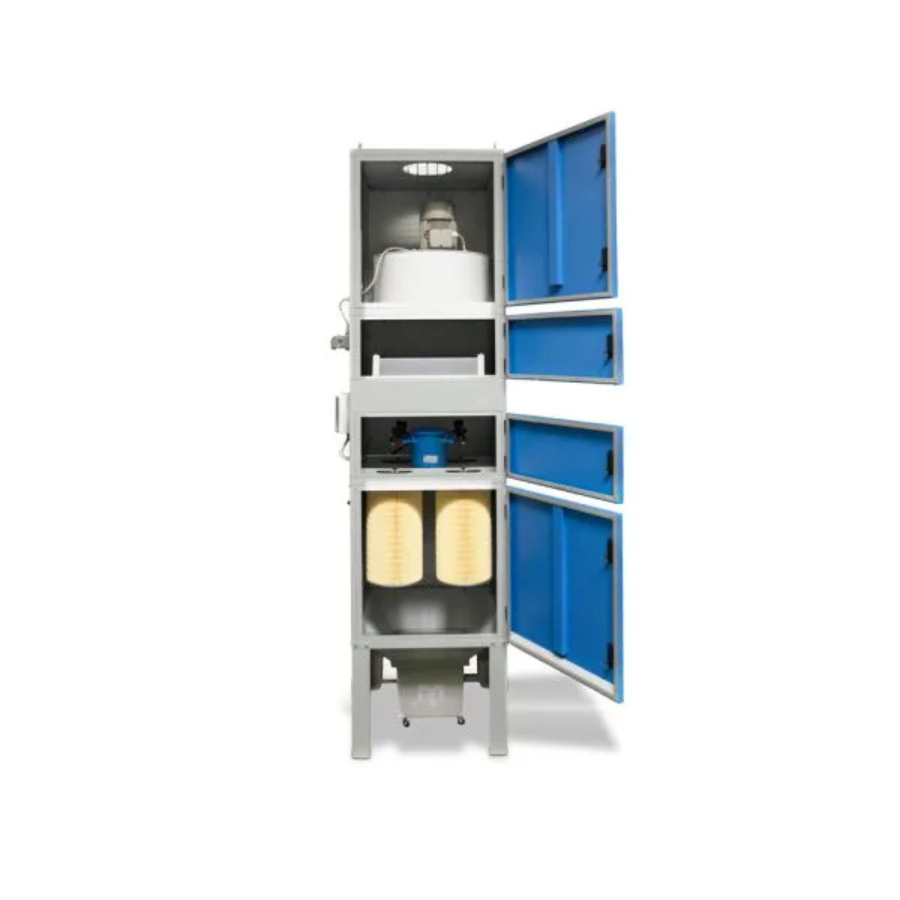

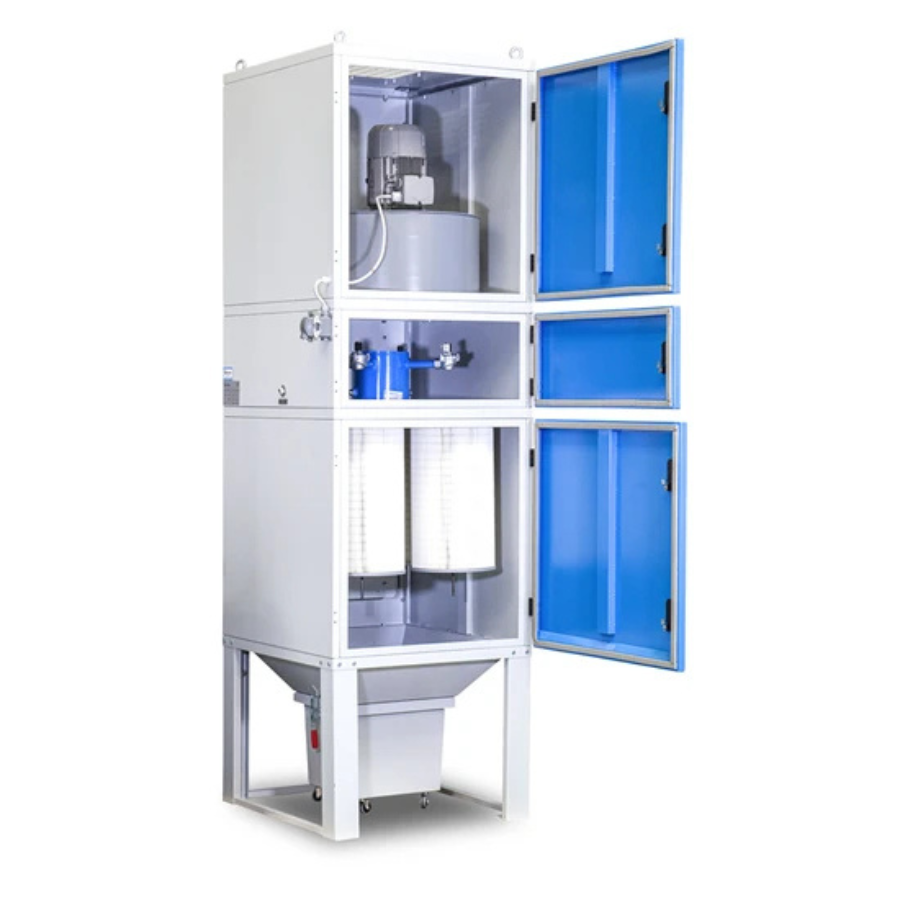

Cartridge-based surface filtration
Emission level ≤ 5 mg/Nm³
Optional EPA/HEPA filters (EN 1822, E12–H14)
Low noise: 68–75 dBA
Options: dust discharge, LED indicator, shaking system
RAM SVEIS OG BEMANNING AS is the exclusive distributor of FRESHWELD in Norway, offering local service, support, and fast delivery.
