Description

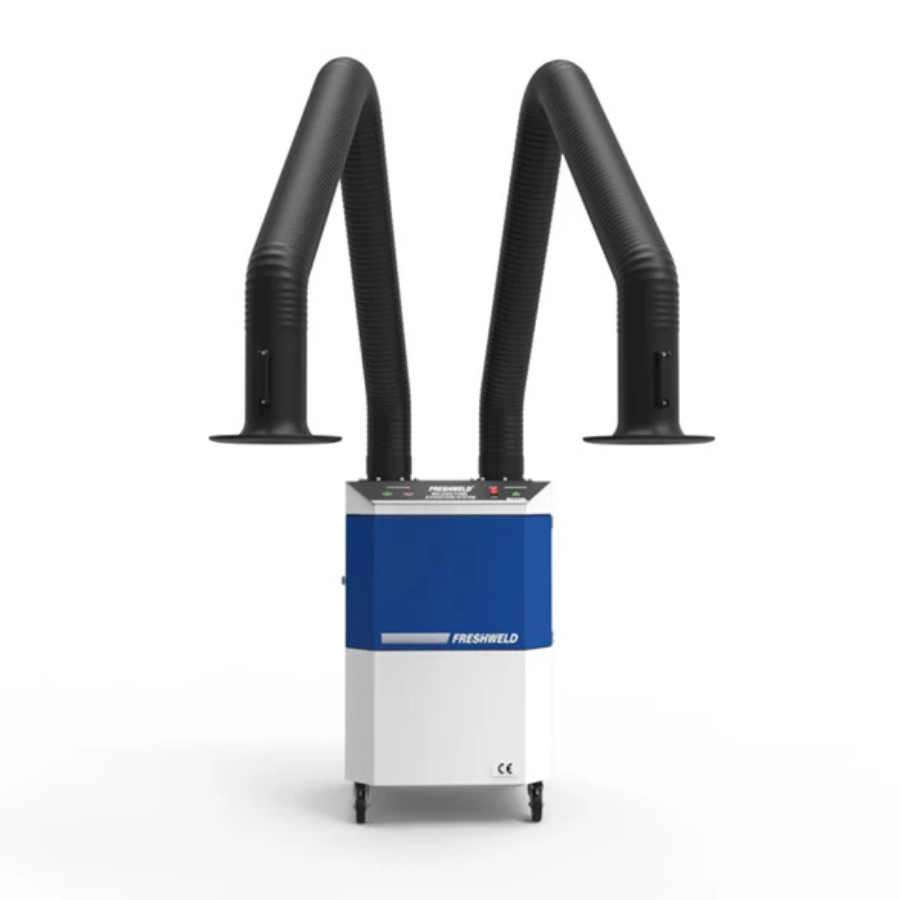

Mobile Welding Fume Extractor – Dual-Arm Certified Air Filtration System
The mobile welding fume extractor from the FRESHWELD M2/2200 series is a dual-arm filtration system designed to handle two simultaneous welding sources. It is ideal for industrial facilities where air purification and productivity go hand in hand. Thanks to its double extraction arms and compact mobile structure, the unit provides both flexibility and high filtration performance.
This mobile extractor includes individual flow controls for each arm, so one arm can be shut off when not needed. The system meets European Machinery Safety Regulations and features spark arrestors, motor protection, and filter indicators to support safe and reliable operation.
It delivers 1300m³/h airflow via a 1.5kW motor and uses a 3-stage filtration system: G2 mesh, G4 coarse, and either F9 or E12 final filter, depending on the model.
All 8 Model Variations of the M2/2200 Series
| Model Code | Arm Setup | Final Filter | Filter Surface Area | Airflow | Weight |
|---|---|---|---|---|---|
| 111M222000 | Without arm | F9 Fine Filter (EN 779) | 25m² | 1000–1300 m³/h | 99kg |
| 111M222002 | 2 x 2m | F9 Fine Filter (EN 779) | 25m² | 850–1300 m³/h | 119kg |
| 111M222003 | 2 x 3m | F9 Fine Filter (EN 779) | 25m² | 850–1300 m³/h | 133kg |
| 111M222004 | 2 x 4m | F9 Fine Filter (EN 779) | 25m² | 850–1300 m³/h | 141kg |
| 112M222000 | Without arm | E12 EPA Filter (EN 1822) | 40m² | 1000–1300 m³/h | 99kg |
| 112M222002 | 2 x 2m | E12 EPA Filter (EN 1822) | 40m² | 850–1300 m³/h | 119kg |
| 112M222003 | 2 x 3m | E12 EPA Filter (EN 1822) | 40m² | 850–1300 m³/h | 133kg |
| 112M222004 | 2 x 4m | E12 EPA Filter (EN 1822) | 40m² | 850–1300 m³/h | 141kg |
Key Features at a Glance
Dual flexible extraction arms: 2m, 3m, or 4m each
3-stage filter system: G2 Mesh, G4 Coarse, and F9 or E12 final filter
Individual arm shut-off via flow control damper
1.5kW motor delivering up to 1300m³/h airflow
Aluminium spark arrestor for added safety
Phase sequence and reverse rotation protection
Filter replacement indicator lights
Operates at only 72dB – ultra-quiet performance
Mobile structure with lockable wheels
3-meter power cable included
Fully certified: EN 779, EN 1822, EN ISO, and EU Machinery Safety
As a result, this dual-arm extractor increases efficiency while reducing air contamination in industrial workshops. Moreover, operators can save energy by shutting off one of the arms when it is not in use. In addition, the unit is quiet, mobile, and easy to service. These features make it a complete industrial air filtration system that helps companies meet safety and productivity standards.
RAM SVEIS OG BEMANNING AS is the exclusive distributor of FRESHWELD in Norway, offering local service, support, and fast delivery.
