Description
Stationary Welding Fume Extractor – Flexible Dual-Arm Filtration for Fixed Installations
The stationary welding fume extractor FRESHWELD SM/920 is a powerful and reliable industrial air filtration system designed to remove smoke and dust during welding. Installed permanently in workshops or welding booths, it delivers strong airflow, durable filters, and safe operation through smart safety functions.

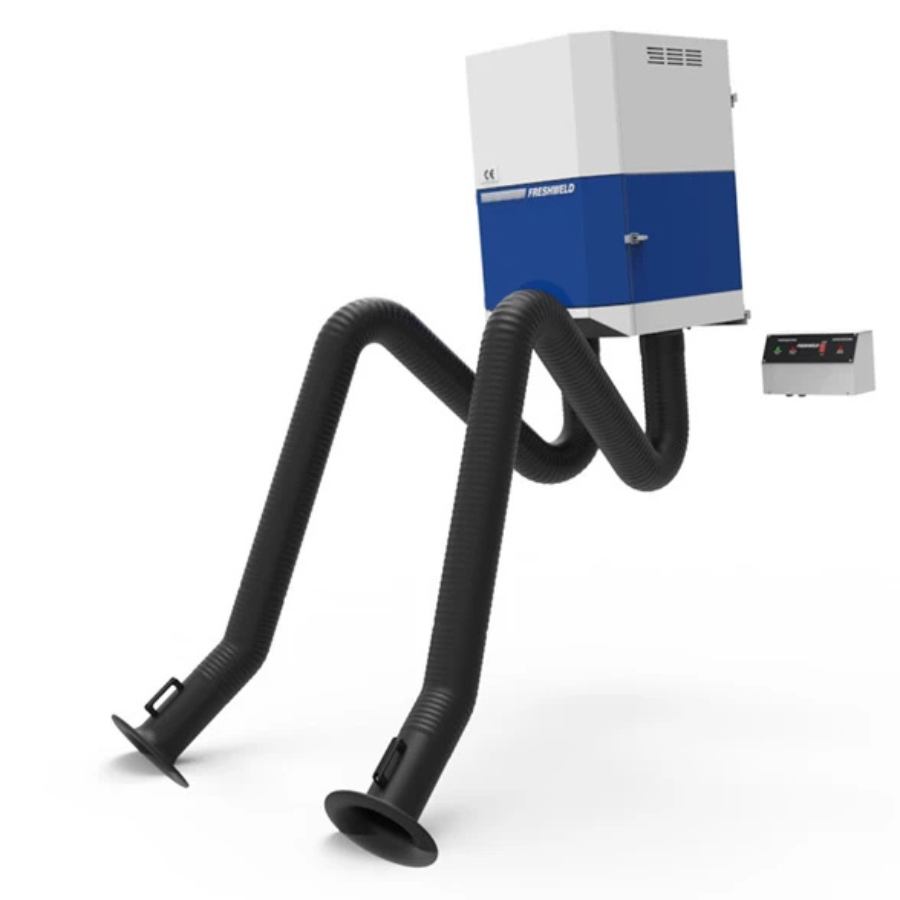

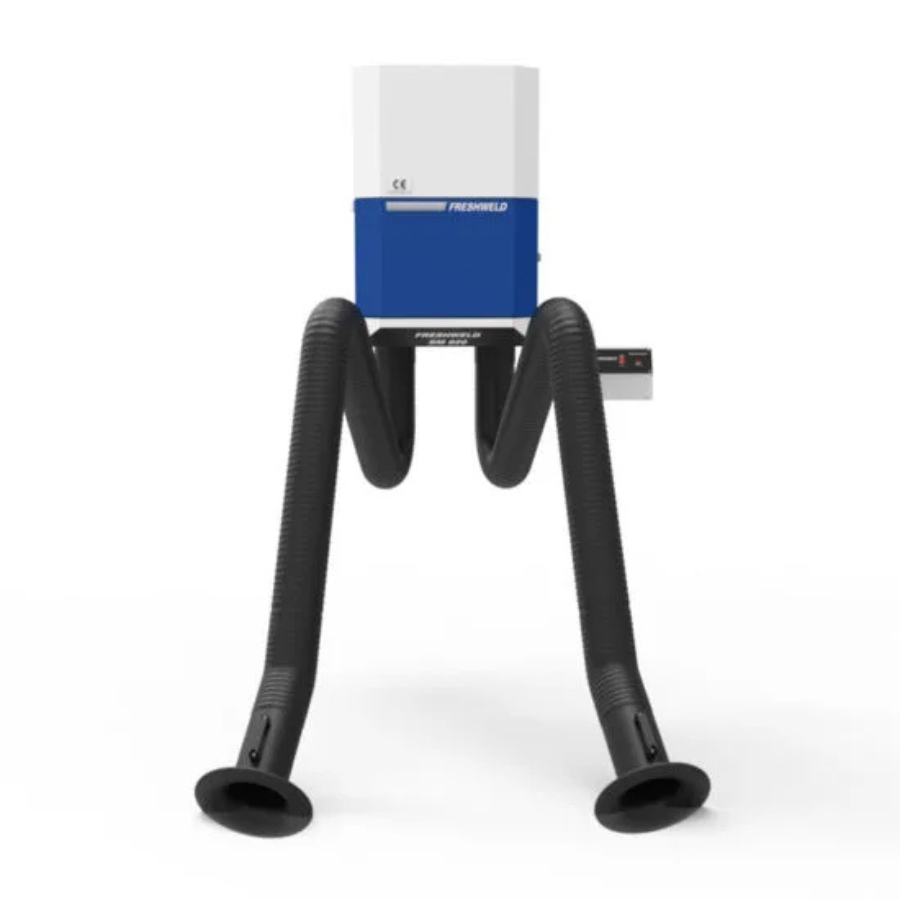

The SM/920 series supports a dual-arm setup with flexible acrobat arms from 2 to 7 meters. This wide reach provides excellent coverage. The system features a 4-stage filter configuration: G2 mesh, G4 coarse filter, F9 or E12 fine filter, and an optional carbon stage. As a result, it removes fine particles, odors, and gas efficiently.
A 1.5kW motor powers the airflow up to 1300m³/h, and the system works quietly at just 72dB. In addition, it includes safety features like phase loss protection, spark arrestor, and reverse rotation warning. For example, the built-in control panel and filter change indicators make daily use easy and safe.
Therefore, the SM/920 is the right solution for companies needing a high-volume extractor in fixed welding stations.
All 8 Model Variations of the SM/920 Series
| FW Code | Arm Setup | Final Filter | Filter Area | Airflow | Weight |
|---|---|---|---|---|---|
| 211SM92000 | Without arm | F9 Fine Filter (EN 779) | 25m² | 1000–1300 m³/h | 99kg |
| 211SM92002 | 2 x 2m | F9 Fine Filter (EN 779) | 25m² | 850–1300 m³/h | 119kg |
| 211SM92003 | 2 x 3m | F9 Fine Filter (EN 779) | 25m² | 850–1300 m³/h | 133kg |
| 211SM92004 | 2 x 4m | F9 Fine Filter (EN 779) | 25m² | 850–1300 m³/h | 141kg |
| 212SM92000 | Without arm | E12 EPA Filter (EN 1822) | 40m² | 1000–1300 m³/h | 99kg |
| 212SM92002 | 2 x 2m | E12 EPA Filter (EN 1822) | 40m² | 850–1300 m³/h | 119kg |
| 212SM92003 | 2 x 3m | E12 EPA Filter (EN 1822) | 40m² | 850–1300 m³/h | 133kg |
| 212SM92004 | 2 x 4m | E12 EPA Filter (EN 1822) | 40m² | 850–1300 m³/h | 141kg |
Key Features at a Glance
Fixed design for welding booths and production halls
Dual-arm setup with flexible 2–4m reach (up to 7m optional)
4-stage filter system: G2, G4, F9 or E12, and optional carbon module
Quiet performance: 72dB during operation
Airflow up to 1300 m³/h, powered by 1.5kW motor
Spark arrestor and reverse rotation warning included
Indicator lights show when filters need changing
Simple control via external panel
Certified under EN 779, EN 1822, EN ISO, and Machinery Safety standards
As a result, the stationary welding fume extractor from the SM/920 series works well in heavy-use environments. It provides clean air, better working conditions, and protection from harmful particles. Moreover, it can be combined with robotic welding arms or central systems. Therefore, it is a complete industrial air filtration system for long-term use.
RAM SVEIS OG BEMANNING AS is the exclusive distributor of FRESHWELD in Norway, offering local service, support, and fast delivery.
