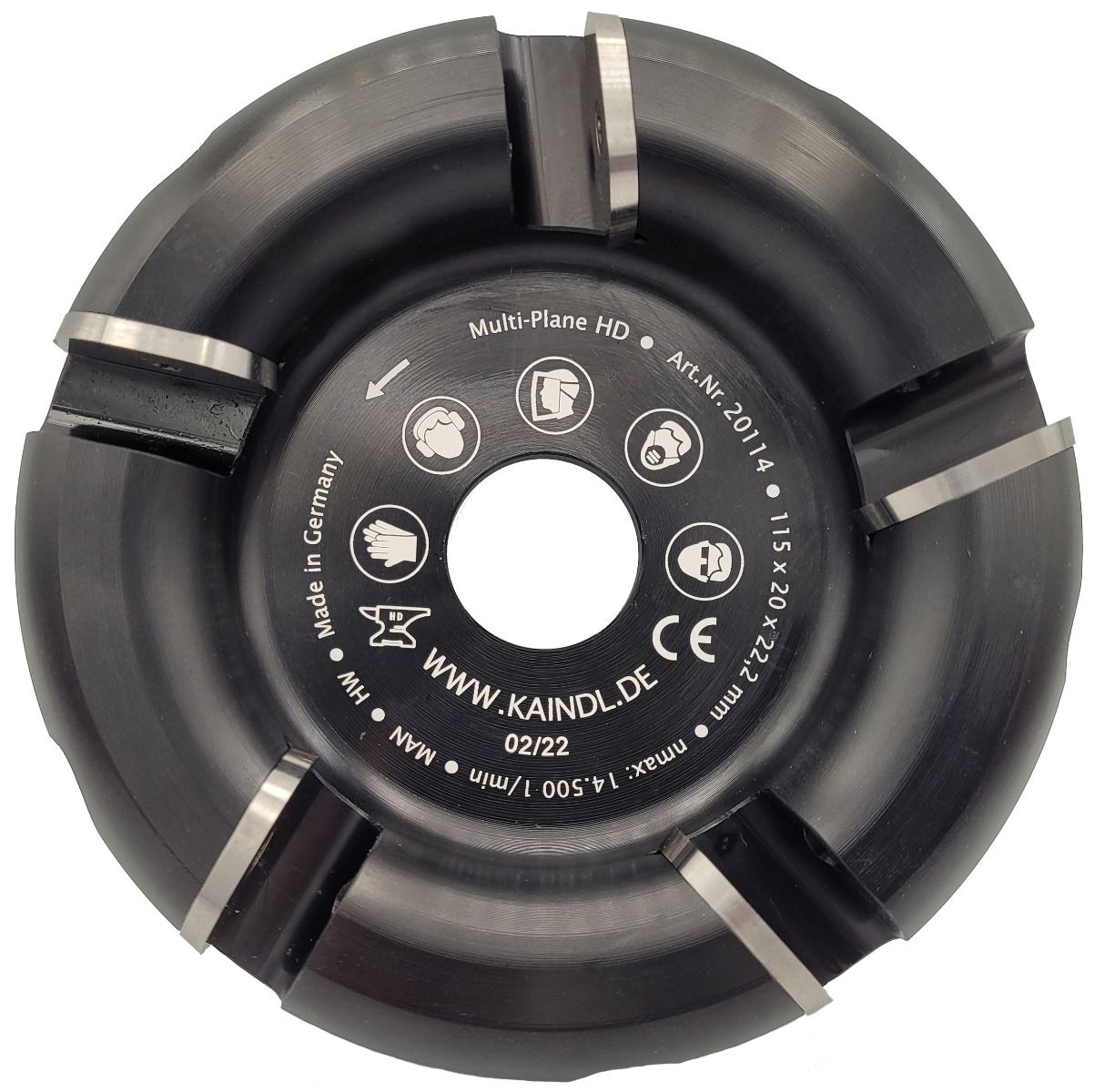

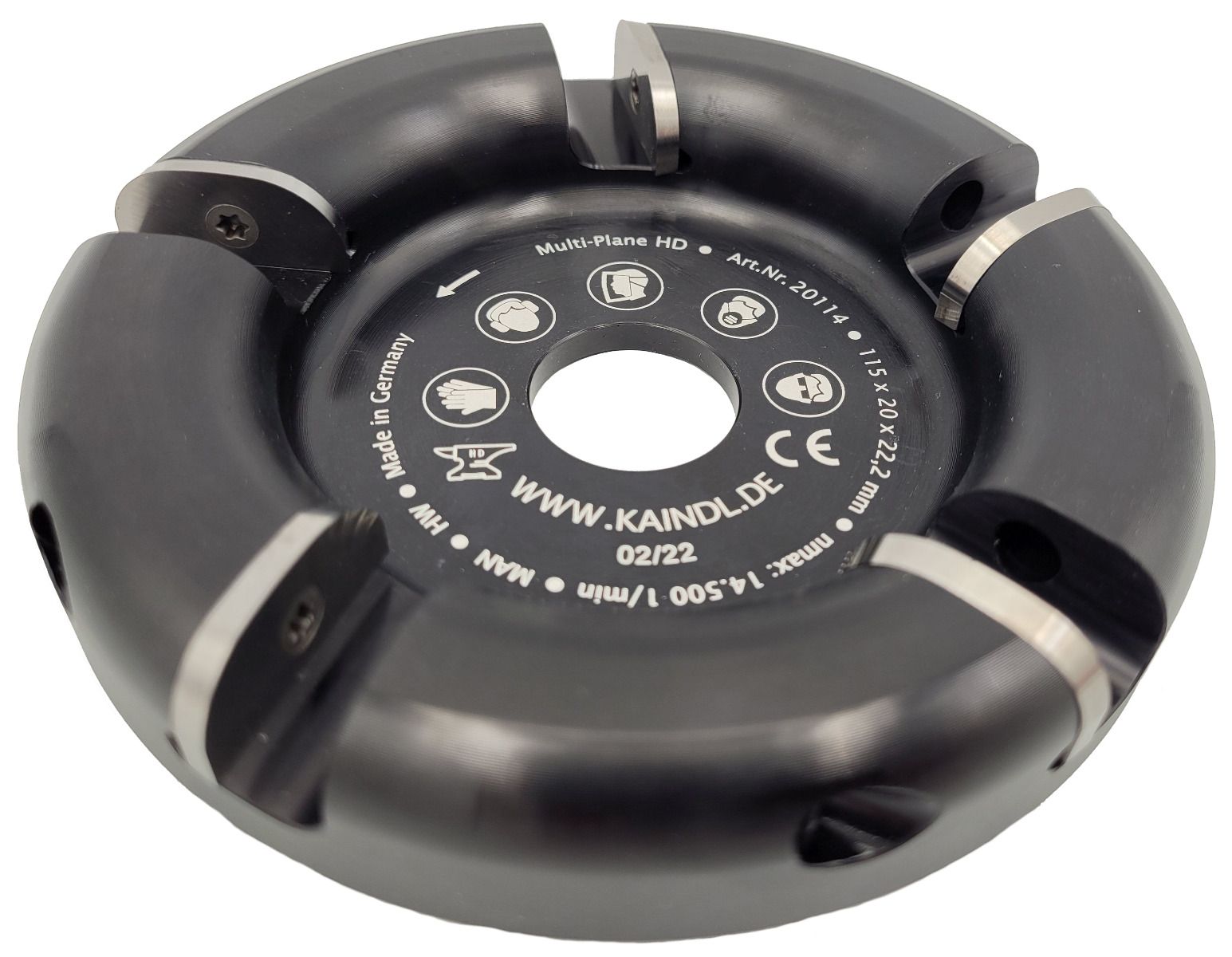

Kaindl Multi-Plane HD Milling Disc 115x20x22,2 mm – Exclusive in Norway

The Kaindl Multi-Plane HD Milling Disc is a professional tool designed for aluminium and other soft metals. Unlike standard grinding wheels, it removes material by chipping. As a result, it produces chips instead of dust, making the process much safer and cleaner. Moreover, the tool gives operators more control while keeping a very high removal rate.

It is made in Germany from high-strength aluminium and comes with replaceable carbide inserts. Therefore, the tool is both durable and cost-effective. In addition, the polished surface prevents buildup, which keeps the cut smooth and efficient.

Click here to download product data sheet -en.

Why Choose the Kaindl Multi-Plane HD Milling Disc?

• It provides a safer process, since chips are produced instead of dust.

• It uses long-lasting carbide inserts, which can be reversed or replaced.

• It ensures fast and precise removal, but with easy control.

• It works on many materials, including aluminium, copper, zinc, wood, and plastics.

• It reflects German engineering quality.

• It is sold exclusively in Norway by RAM SVEIS OG BEMANNING AS.

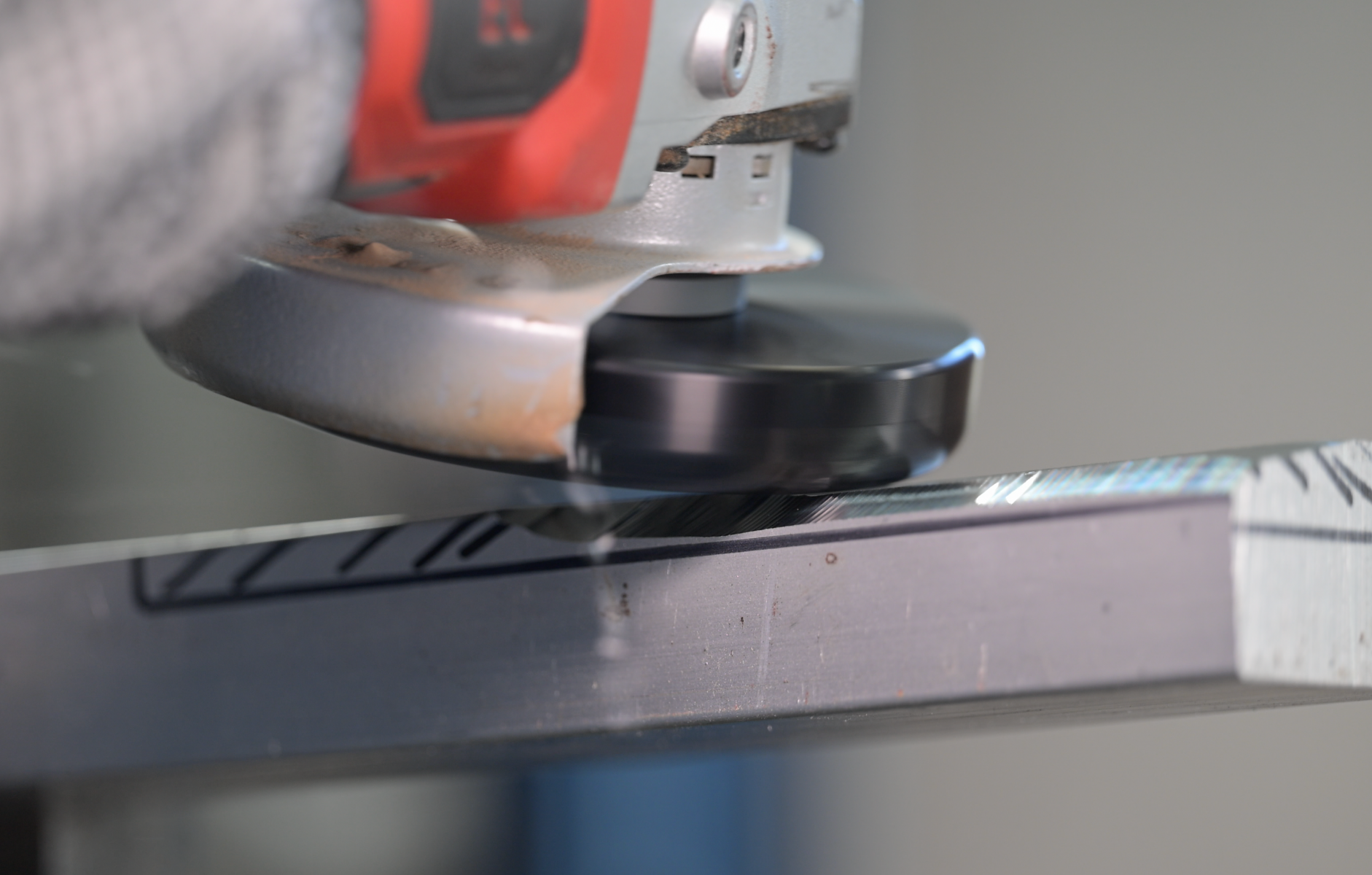

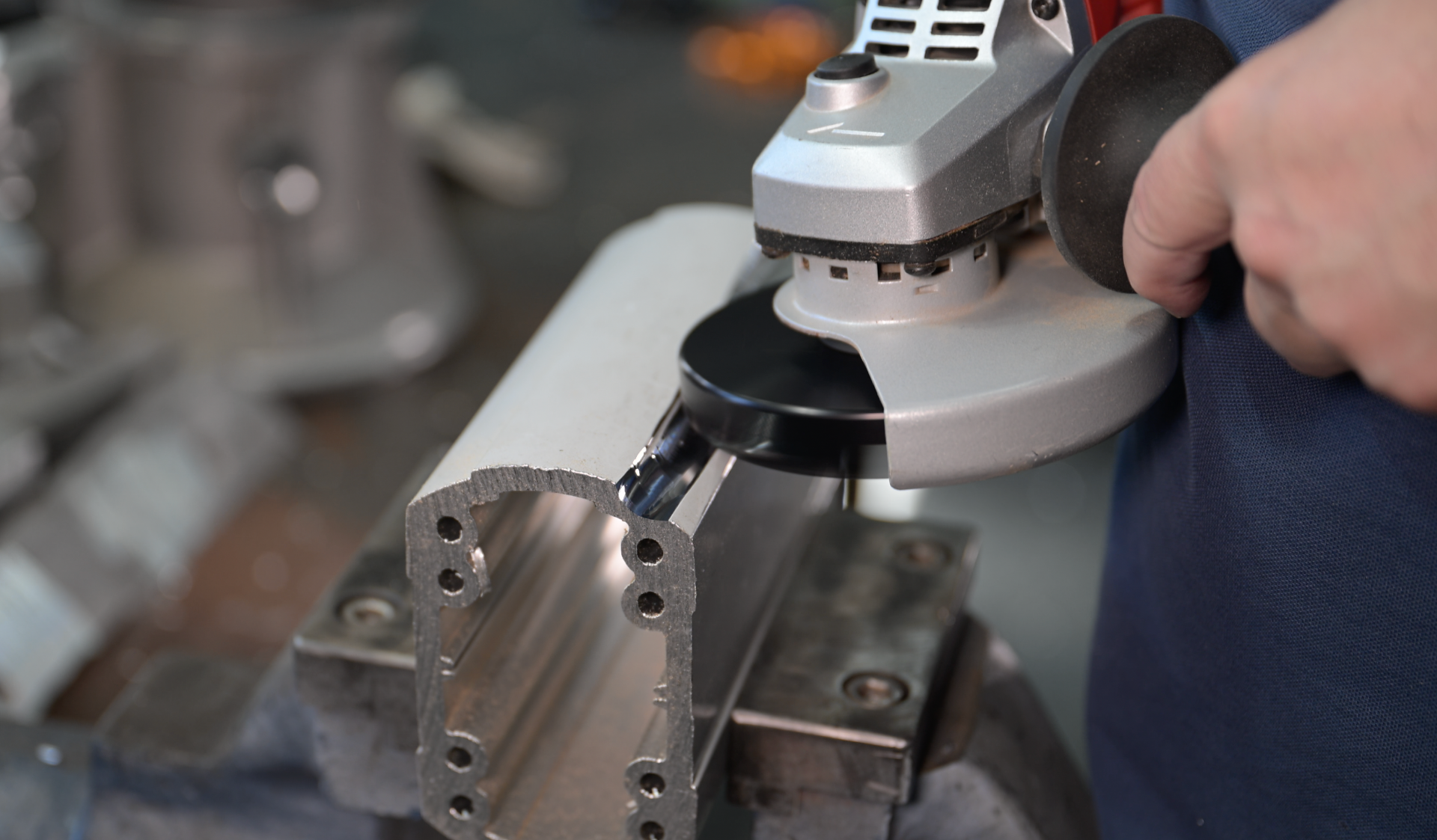

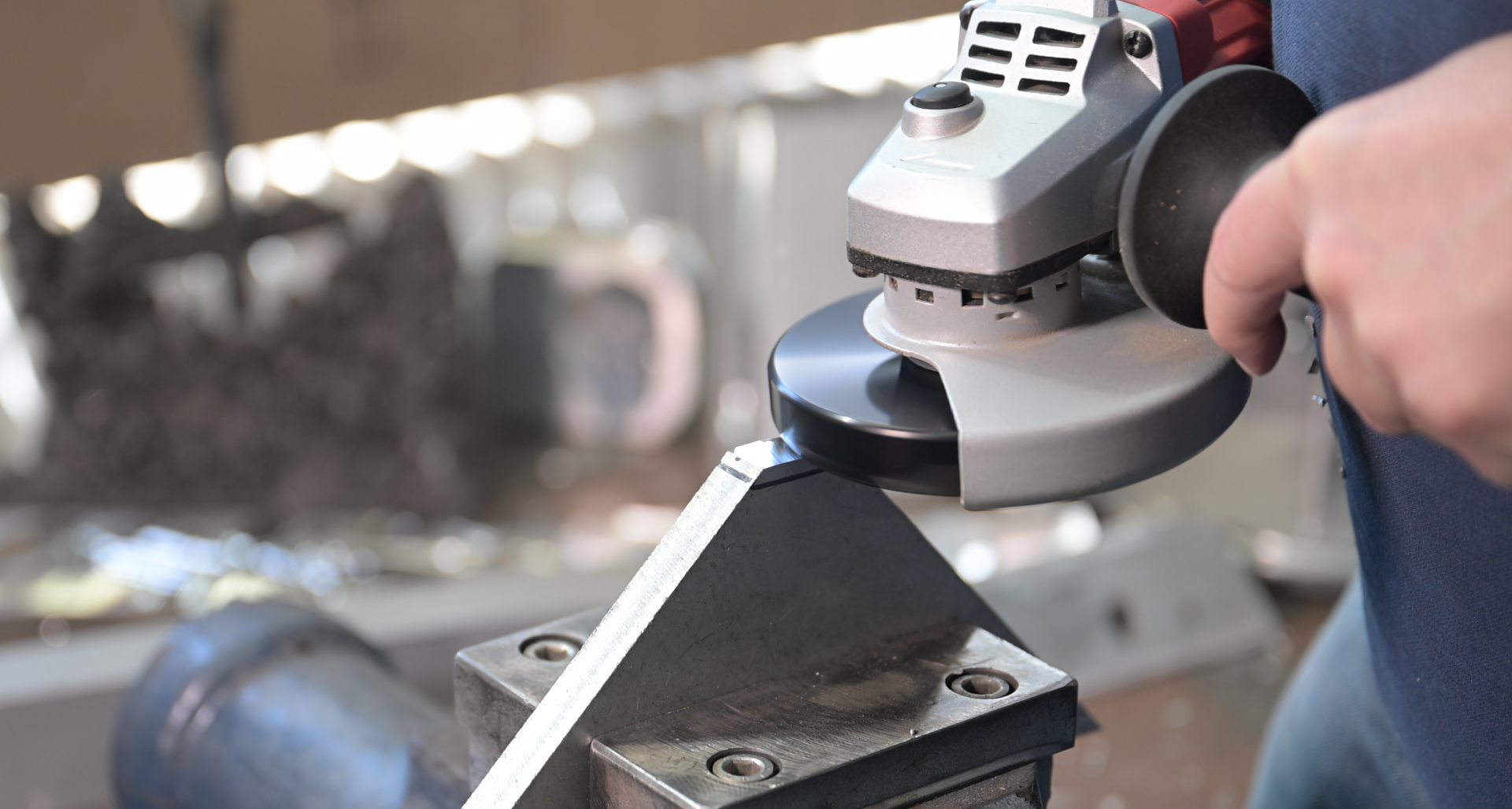

Applications of the Kaindl Multi-Plane HD Milling Disc

This milling disc is used in many industries. For example, welding shops use it for seam preparation and finishing. In addition, shipbuilding and container manufacturing companies use it for aluminium processing. Consequently, it is a popular tool in automotive production and foundries as well.

Common applications include:

• Chamfering and trimming of welding seams

• Cleaning and reaming root seams

• Rough machining of aluminium and cast parts

• Processing fibre-reinforced plastics, copper, zinc, and wood

Technical Specifications

• Dimensions: 115 x 20 x 22,2 mm

• Max. RPM: 14,500/min

• Cutting material: Sharpened carbide inserts

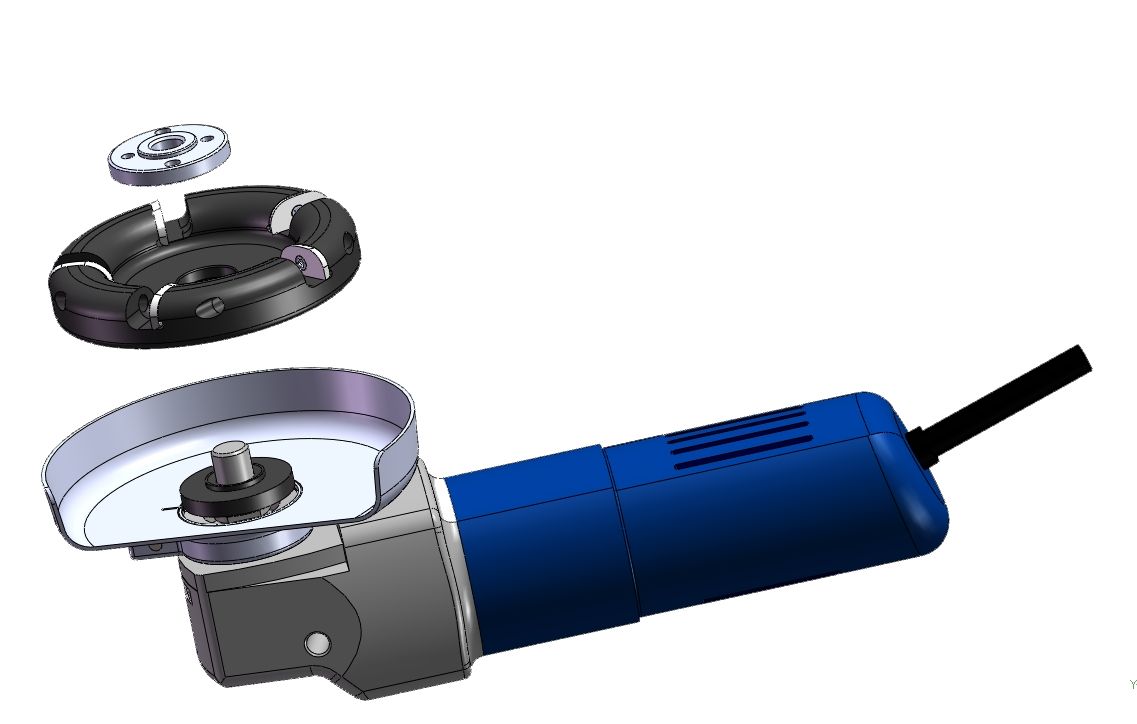

• Application: Manual use with 115–125 mm angle grinders

• Tightening torque: 4 Nm (T15 screw, M4 x 11 mm)

• Weight: 510 g with case

• Packaging: Plastic case with Torx T15 key

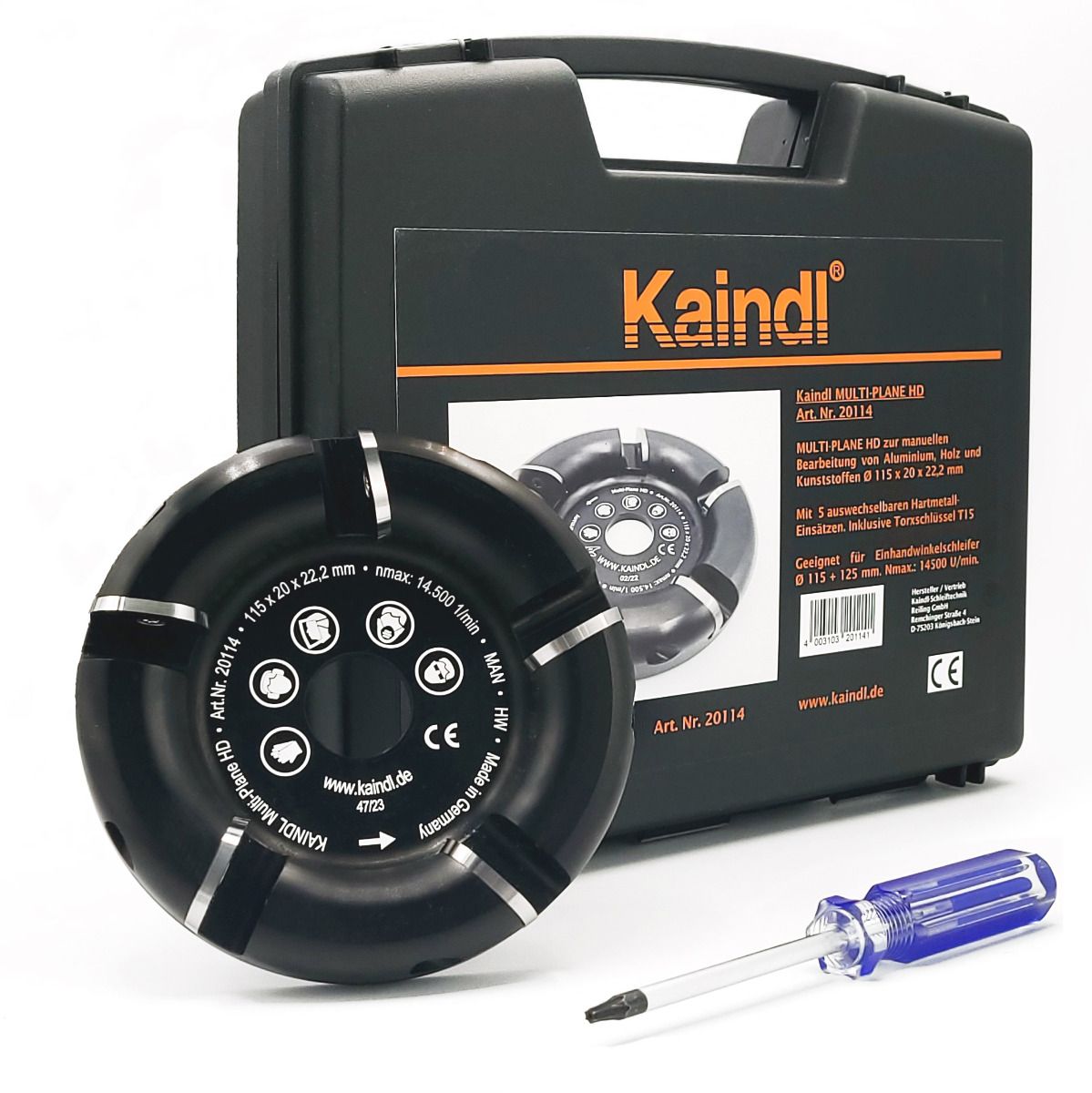

Scope of Delivery

Each Kaindl Multi-Plane HD Milling Disc includes:

• 1 disc with carbide inserts

• 1 Torx T15 screwdriver

• 1 user manual

• 1 protective storage case

Accessories

• Carbide insert set (5 pcs, Art. 19994)

• Clamping bolt (Art. 19071)

Safety Instructions

Before use, always wear safety glasses, gloves, hearing protection, and a dust mask. Furthermore, secure the workpiece firmly to avoid vibration. Do not use this disc in explosive or flammable environments. Finally, only use original Kaindl spare parts.

FAQ – Kaindl Multi-Plane HD Milling Disc

Q1: Can I use it for cutting?
No, it is designed for milling and chipping, not cutting.

Q2: What materials can I process?
Aluminium alloys, copper, zinc, plastics, fibre-reinforced composites, and wood.

Q3: How long do the inserts last?
They are reversible, which doubles their life. When worn, they can be replaced.

Q4: Where can I buy it in Norway?
Only at RAM SVEIS OG BEMANNING AS.
