Description

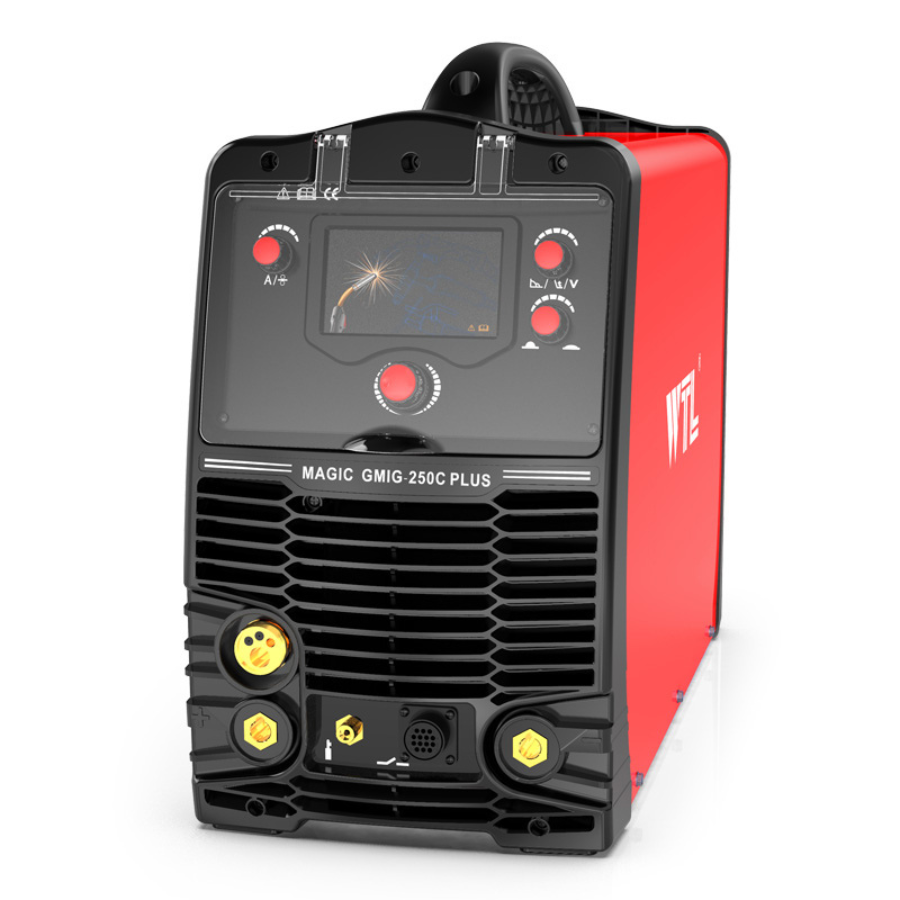

MIG Welder MAGIC GMIG 250C PLUS (1ph 97–220V)
This welding equipment supports MIG/TIG/MMA welding. It features full synergic control, allowing automatic adjustment of parameters according to the welding current. With a wide input voltage range from 97V to 220V, integrated PFC technology, and a 4.3-inch LCD display, this inverter welder ensures precise control, high efficiency, and excellent usability for both beginners and professionals.
Features
4.3-inch LCD display: All welding parameters are displayed in real time for enhanced visibility and control.
Multi-process capability: Supports MIG, Lift TIG, and MMA welding, suitable for various applications in industry and workshops.
Synergic adjustment: Automatically adjusts wire feed and voltage based on current for easier setup and smooth arc starts.
Memory channels: Stores up to 9 welding programs for instant reuse without resetting.
Soft switching technology: Reduces power loss, improves arc stability, and prolongs the lifespan of IGBT modules.
Smart-V Technology + adjustable OCV: Provides fast arc ignition, safer operation, and lower idle power loss compared to VRD machines.
PFC (Power Factor Correction): Enables stable operation from 97V to 220V, with a power factor of 0.99 and high energy efficiency.
Integrated protection system: Alerts and halts welding in case of low voltage, over-current, or overheat, protecting both user and machine.
Generator compatible: Can be safely operated using a generator, ideal for mobile or off-grid work environments.
5kg & 15kg spool support: Compatible with both small and large wire spools for flexibility in production and repair work.
Technical Parameters
| Model | MAGIC GMIG 250C PLUS (1ph 97–220V) |
|---|---|
| Input Voltage | 1~ 97–220V ±10% |
| Frequency | 50/60Hz |
| Welding Processes | MIG / TIG / MMA |
| Rated Input Power (kW) | MIG: 7.7 / TIG: 5.9 / MMA: 8.6 |
| Rated Input Current (A) | MIG: 36.2 / TIG: 27 / MMA: 40 |
| Effective Current (A) | MIG: 22.9 / TIG: 17.1 / MMA: 25.3 |
| Duty Cycle (40°C, 10min) | 40% @ 250A / 60% @ 195A / 100% @ 158A |
| No-load Voltage (V) | 45 (Controlled) |
| Welding Current Range (A) | 10 – 250 (MIG/TIG/MMA) |
| Welding Voltage Range (V) | 10 – 30 |
| Efficiency (%) | 85 |
| Power Factor | 0.99 |
| Wire Diameter Compatibility | Fe: 0.6/0.8/0.9/1.0/1.2 mm Ss: 0.8/1.0/1.2 mm Al: 0.9/1.0/1.2 mm Flux (self-shield): 0.9/1.0/1.2 mm |
| Net Weight (kg) | 27 |
| Dimensions (mm) | 660 × 275 × 500 |
| Protection Class | IP23 |
| Insulation Class | F |
| Cooling | AF (Air Forced) |
Accessories
Standard Accessories Included in the Package:
Earth cable – 25 mm², 3 meters, with Euro plug 35–70 mm² and 300A earth clamp
TIG Torch – For model 250MF, 4 meters
MIG Torch – MB 25, 4 meters with remote (Parweld) – model UBPRO2400-40ER4
Gas hose – 4 meters, size Ø5mm × Ø8mm
Hose clamp – Ø5
Copper female connector – Ø6, model FA3045
Manufacturer Information
WTL was established in 1993 as a professional welding equipment manufacturer specializing in inverter welding and steel cutting machines. With a full portfolio of MIG, TIG, and MMA solutions, WTL delivers high-performance equipment trusted by professionals worldwide. Their continuous innovation in welding technologies ensures reliability, user-friendly design, and competitiveness in the global industrial market.
Official Exclusive Distribution in Norway
The MAGIC GMIG 250C PLUS welding machine is available exclusively in Norway through RAM SVEIS OG BEMANNING AS, the official distributor of WTL equipment for the Norwegian market.
As a trusted supplier of advanced welding solutions, RAM SVEIS provides direct access to WTL’s professional-grade equipment, backed by local technical expertise, fast delivery, and tailored industrial support. Our close partnership with the manufacturer ensures we can deliver optimized solutions for demanding sectors such as shipbuilding, offshore operations, heavy industry, fabrication workshops, and maintenance contractors.
This exclusive distribution ensures Norwegian customers benefit from:
Certified WTL equipment with factory warranty and service
Spare parts availability and expert consulting in Norway
In-person equipment demonstrations and technical support
Strategic stock held in Kristiansand for rapid delivery
Localized welding solutions adapted to Norwegian industry standards
If your business is looking for a high-performance synergic MIG welding machine for steel, stainless steel, or aluminum, fully compatible with Norwegian power grids and industrial requirements – this model is engineered for you.
