Description

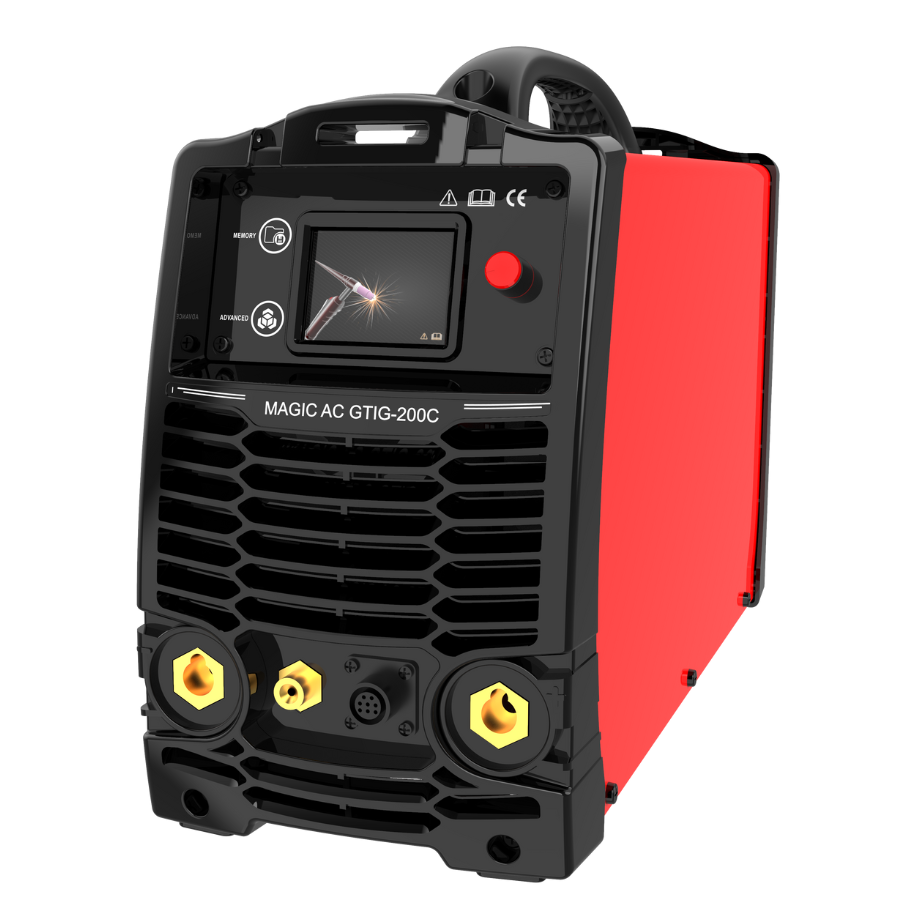

MAGIC AC GTIG 200C – AC/DC TIG Welding Machine with 8-Pin Torch + EMC – Professional TIG Welder for Precision Applications
The MAGIC AC GTIG 200C is a high-performance AC/DC TIG welding machine designed for demanding applications in industrial environments, shipyards, workshops, and mobile repair operations. With advanced PFC technology, electronic HF ignition, and full EMC protection, it delivers stable, efficient arc performance across a wide voltage range.
Equipped with 8-pin torch support, digital control, pulse and bilevel modes, and dual TIG/MMA operation, this welder is ideal for welding aluminum, stainless steel, copper, and more — offering precision, versatility, and safety for professional welders in Norway.
Key Features
Supports AC/DC TIG and MMA welding for all metals
Spot/stitching welding modes for advanced control
High-frequency electronic ignition (HF) for instant arc start
Integrated EMC protection for stable and safe operation
Adjustable pulse, cleaning effect, and arc force
Bilevel function for dynamic control between two current levels
Intelligent microprocessor control with digital display
Wide input range (100V–275V) via PFC for generator compatibility
Soft switching IGBT technology for smooth arc and long machine life
Smart-V and OCV adjustable for safer, faster ignition
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage | 1~100/110/120/127–220/230/240V ±10% |
| Frequency | 50/60Hz |
| Rated Input Power | Up to 5.8 kW |
| Welding Current Range (TIG) | 5–200A |
| Welding Current Range (MMA) | 10–200A |
| Duty Cycle (40°C, 10 min) | 60% at 130A / 100% at 100A |
| Arc Start | Electronic HF |
| AC Waveform | Square |
| AC Frequency | 50–250 Hz |
| Cleaning Width (AC TIG) | 15–50% adjustable |
| Pulse Frequency | 0.5–200 Hz |
| Pulse Width | 5–100% |
| Pre/Post Gas Flow | 0.1–10 s / 1–10 s |
| Protection Class | IP23 |
| Insulation Class | F |
| Dimensions | 480 × 175 × 310 mm |
| Weight | 11.2 kg |
| Cooling | Air Forced (AF) |
Package Contents (Standard Accessories)
TIG Torch ECR17 with 8-pin Up/Down Control
3m Welding Cable 16mm² with Euro plug 35–70mm², Electrode holder 200A
3m Ground Cable 16mm² with Euro plug 35–70mm², Ground clamp 300A
4m Gas Hose – Size Ø5mm × 8mm
Hose Clamp Ø5
Copper Female Connector – Φ6 FA3045
Optional Accessories
Foot Pedal for remote control
TIG Torch with potentiometer
Up/Down remote TIG Torch
Water cooler tank
Welding trolley and torch consumables kit
Frequently Asked Questions (FAQ)
What materials can I weld with this machine?
You can weld aluminum, stainless steel, carbon steel, copper, and more using both AC and DC modes.
Is it suitable for use with a generator?
Yes. Thanks to PFC technology, it runs stably on generators between 100V and 275V.
Does it support foot pedal control?
Yes. The 8-pin interface supports foot pedals and advanced TIG torches with remote control.
Can I use it for precise welding applications?
Absolutely. With pulse, bilevel, and AC waveform control, it’s ideal for thin sheets and fine work.
Is the arc stable for industrial tasks?
Yes. It uses soft switching IGBT tech, delivering smooth arcs and high reliability for heavy-duty work.
Exclusive Distributor in Norway
This model is exclusively distributed in Norway by RAM SVEIS OG BEMANNING AS – the official partner of WTL Welding.
Local stock in Kristiansand
Technical support in English, Norwegian and Romanian
Fast delivery, service and replacement parts available
Contact:
RAM SVEIS OG BEMANNING AS
📍 Address: Linnegrøvan 27, 4640 Søgne, Kristiansand, Norway
📞 Phone: +47 468 43 758 | +47 968 87 890
📩 Email: post@rammultiinvest.no
🌐 Website: www.rammultiinvest.no
