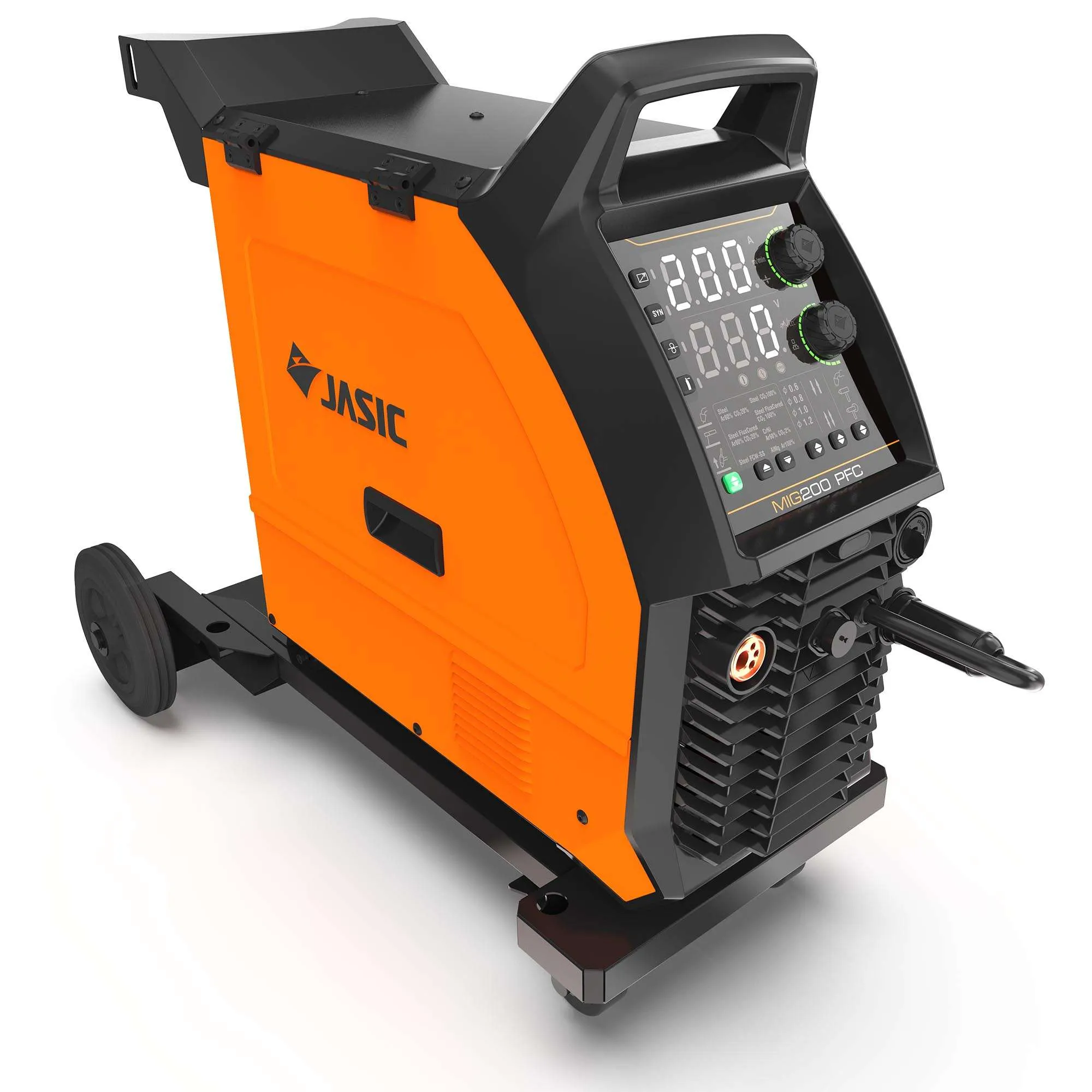

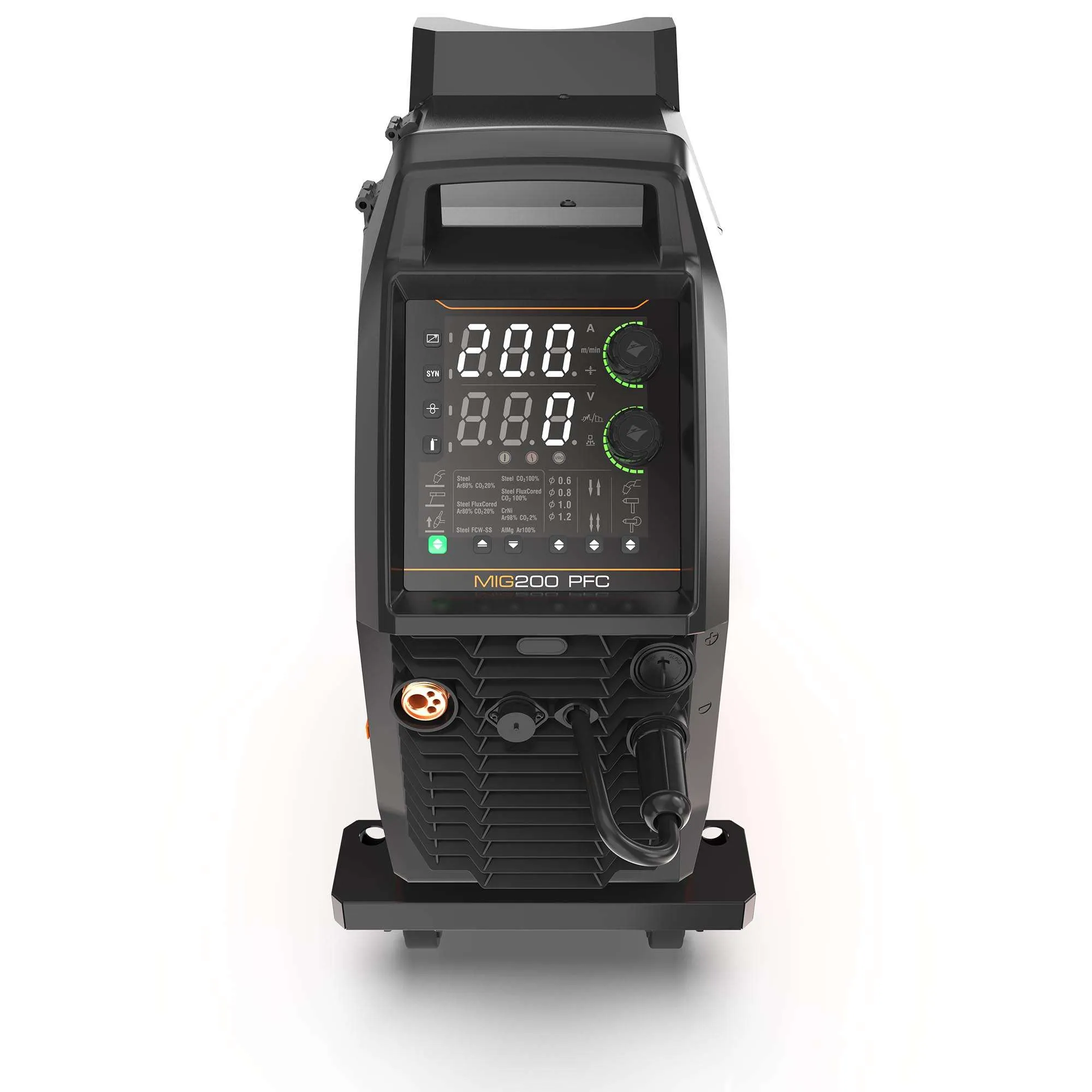

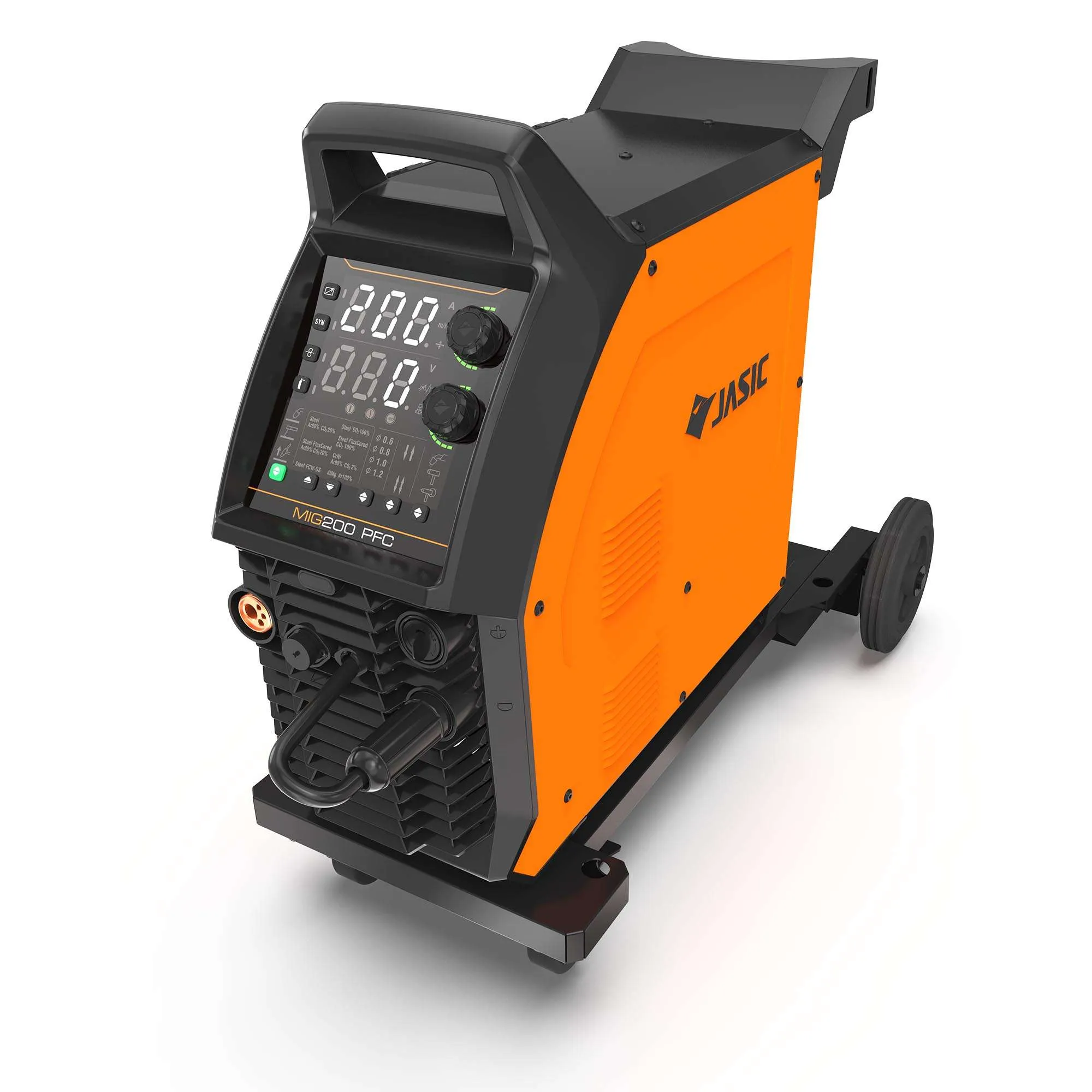

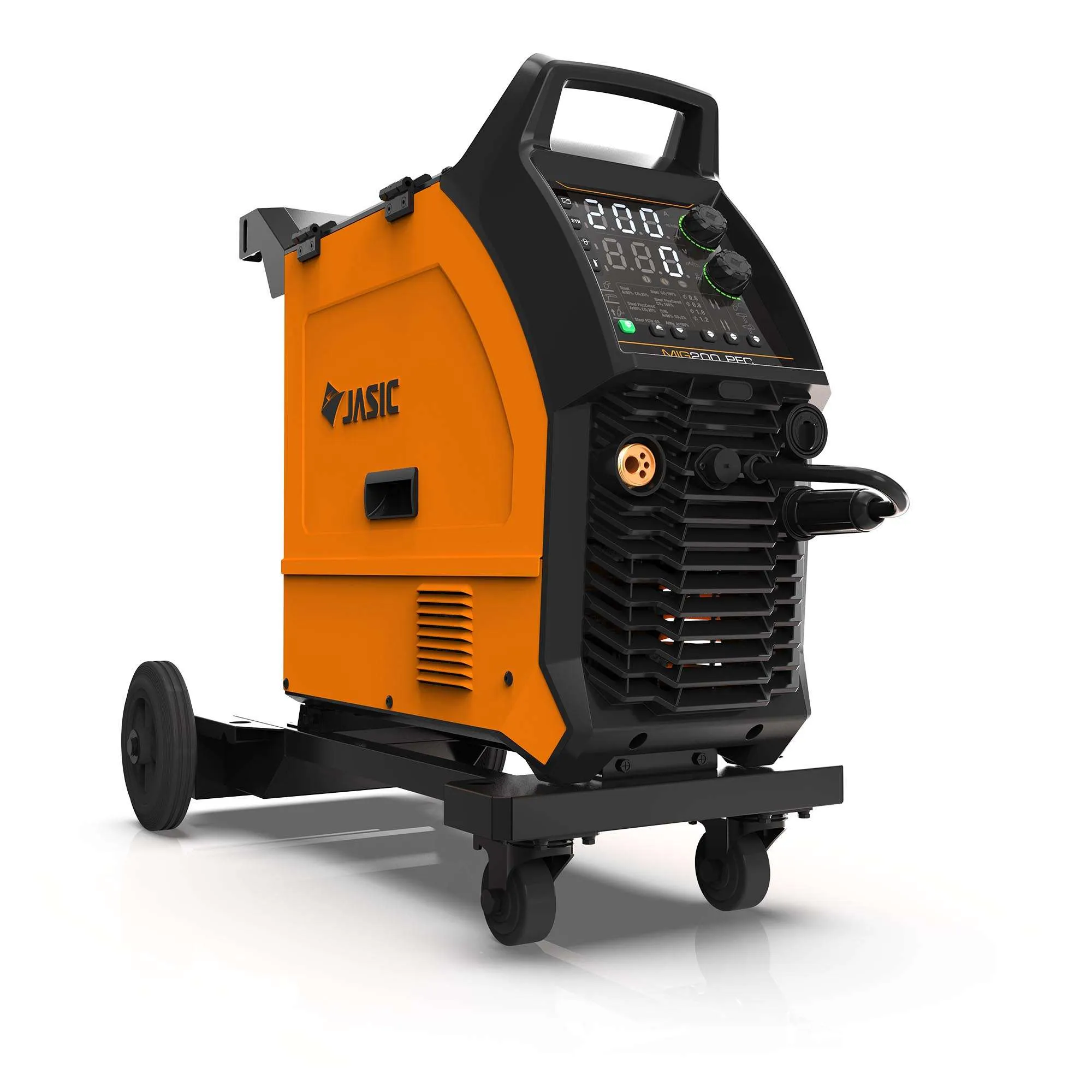

Jasic EVO MIG 200C PFC Inverter – Optimal Performance for Professional Welding
Master the art of welding with the Jasic EVO MIG 200C PFC Compact Inverter, engineered for top-tier performance with Intelligent Synergic Control and ClearVision Technology.
The Jasic EVO MIG 200C PFC Inverter is built to deliver top-tier performance for professional welders. First, it provides 200A of welding power, making it ideal for MIG, TIG, and MMA welding in demanding environments. Moreover, this machine incorporates Intelligent Synergic Control, automatically adjusting welding parameters to ensure consistent, high-quality results across various materials and thicknesses.
Additionally, the ClearVision Technology integrated into the system guarantees excellent visibility during welding tasks, allowing you to work with precision. This feature makes the Jasic EVO MIG 200C perfect for intricate jobs that require accuracy.
Designed for both global voltage compatibility and energy efficiency, the Power Factor Correction (PFC) technology reduces power consumption and allows the machine to be used with generators. In addition, its auto sleep mode helps conserve energy during idle times.
Advanced Features:
The MIG spot welding function allows for precise spot welds with minimal effort, making this inverter a versatile tool for various welding applications. Furthermore, the remote control option gives you added flexibility, enabling you to adjust settings without stopping your workflow.
The Jasic EVO MIG 200C also prioritizes safety, featuring Voltage Reduction Device (VRD) technology and protection for key electronic components. Because of these safety measures, you can rely on this welder for safe and stable performance. Additionally, the built-in LED lighting within the wire feeder cabinet ensures improved visibility during setup.
Key Features of the Jasic EVO MIG 200C PFC Inverter:
- 200A power output: Delivers the performance required for professional welding tasks.
- Intelligent Synergic Control: Automatically adjusts parameters for optimal welding quality.
- Global voltage compatibility: Adapts to different voltage standards (95V–265V).
- Power Factor Correction (PFC): Reduces energy consumption and supports generator use.
- MIG spot welding: Provides precision and ease for spot welding jobs.
- Remote control flexibility: Allows convenient adjustment of settings while working.
- Safety features: Includes VRD technology and protection against overheating and overcurrent.
- LED lighting: Improves visibility in the wire feeder cabinet.
Technical Specifications:
| Specification | Detail |
|---|---|
| Input Power | AC 95V~265V, 50/60 Hz |
| Open Circuit Voltage | 68 V |
| MIG Rated Input Current | 38.1 A / 32.8 A |
| Rated Input Power | 4.4 kVA / 7.5 kVA |
| Output Current Range | 30-140A / 30-200A |
| Duty Cycle | 30% @ 200A |
| Wire Feed Speed | 2-12 m/min / 2-16 m/min |
| MMA/TIG Rated Input Power | 3.2 kVA / 5.7 kVA |
| MMA/TIG Output Current Range | 20-180A / 5-200A |
| Efficiency | >80% |
| Power Factor | 0.99 |
| Idle State Power | < 50 W |
| Protection Class | IP23S |
| Dimensions (LxWxH) | 920 x 480 x 755 mm |
| Net Weight | 41.9 kg |
In The Box:
- Inverter Power Source
- Trolley for easy mobility
- 4m MIG Torch
- 3m Earth Cable & Clamp
- Argon Regulator
- Gas Hose
- 0.8mm/1.0mm ‘V’ Groove Feedrolls
Why Choose the Jasic EVO MIG 200C PFC Inverter?
The Jasic EVO MIG 200C PFC Inverter is perfect for professionals who demand reliability, precision, and versatility. Because of its Intelligent Synergic Control, PFC technology, and global voltage compatibility, this machine delivers high-quality welding in various environments. Its portable trolley design adds mobility, while built-in safety features ensure secure operation. Backed by a 5-year warranty, this inverter is a valuable investment for long-term performance.
