Description

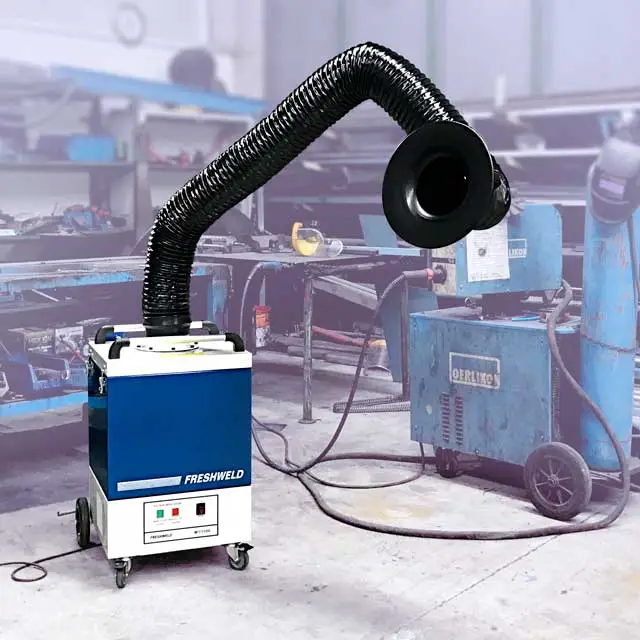

Freshweld M1/1100 Mobile Fume Extraction Unit

The Freshweld M1/1100 is a professional-grade mobile fume extraction unit engineered to meet the air purification demands of welding and fabrication environments. With powerful airflow of up to 1000 m³/h and a 3-stage filtration system, this compact unit ensures cleaner air and better working conditions.

Available in multiple configurations, the M1/1100 series features models with or without extraction arms and optional activated carbon filters for gas phase purification. This flexibility makes it suitable for a wide range of welding and metalworking applications.

Available Configurations

Choose the model that suits your workspace:

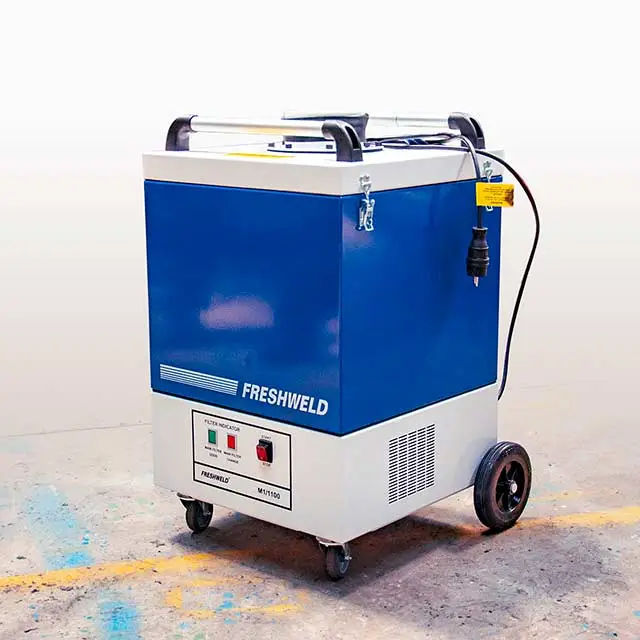

• 101M111000 – Without arm, 2-stage filter (G1 Mesh + F9)

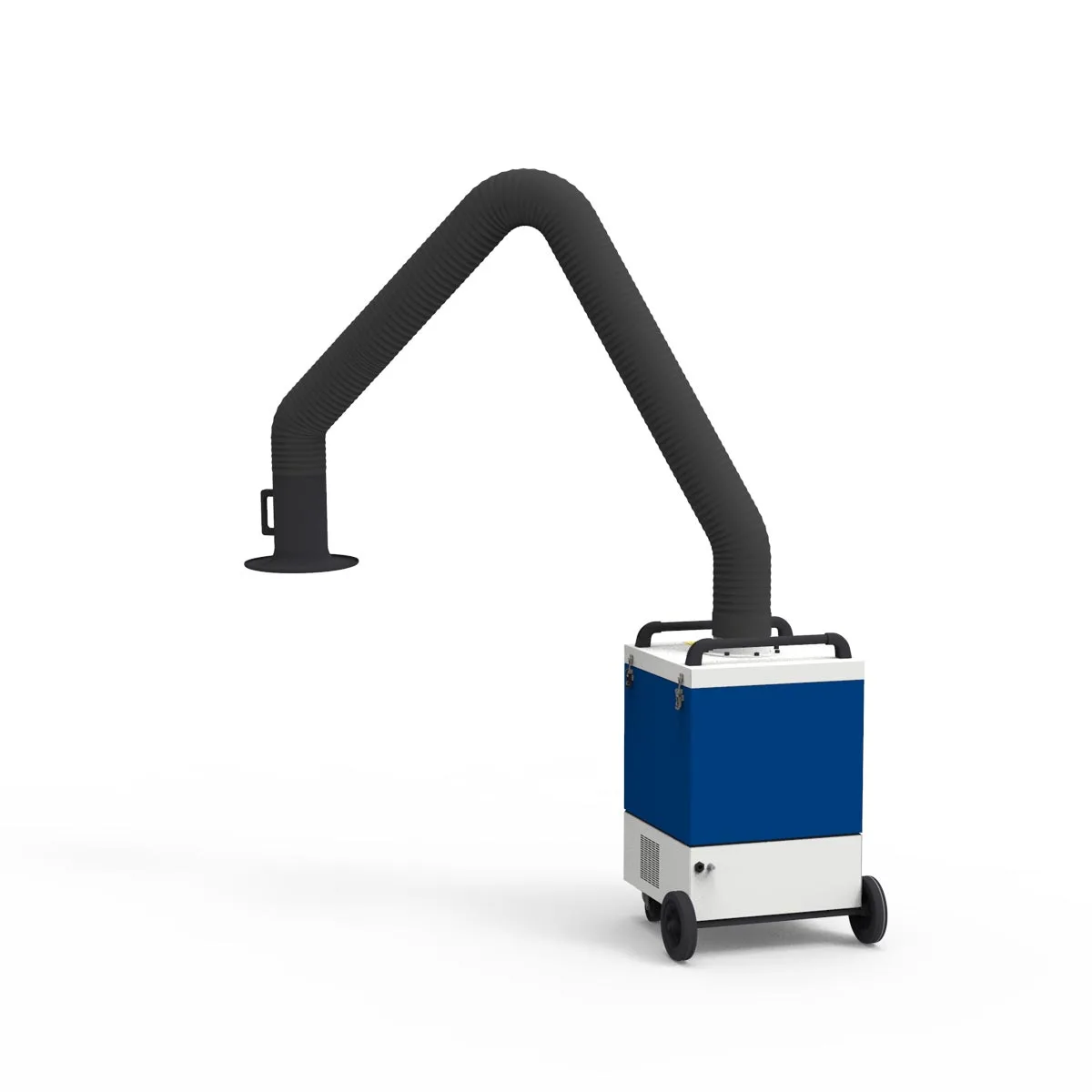

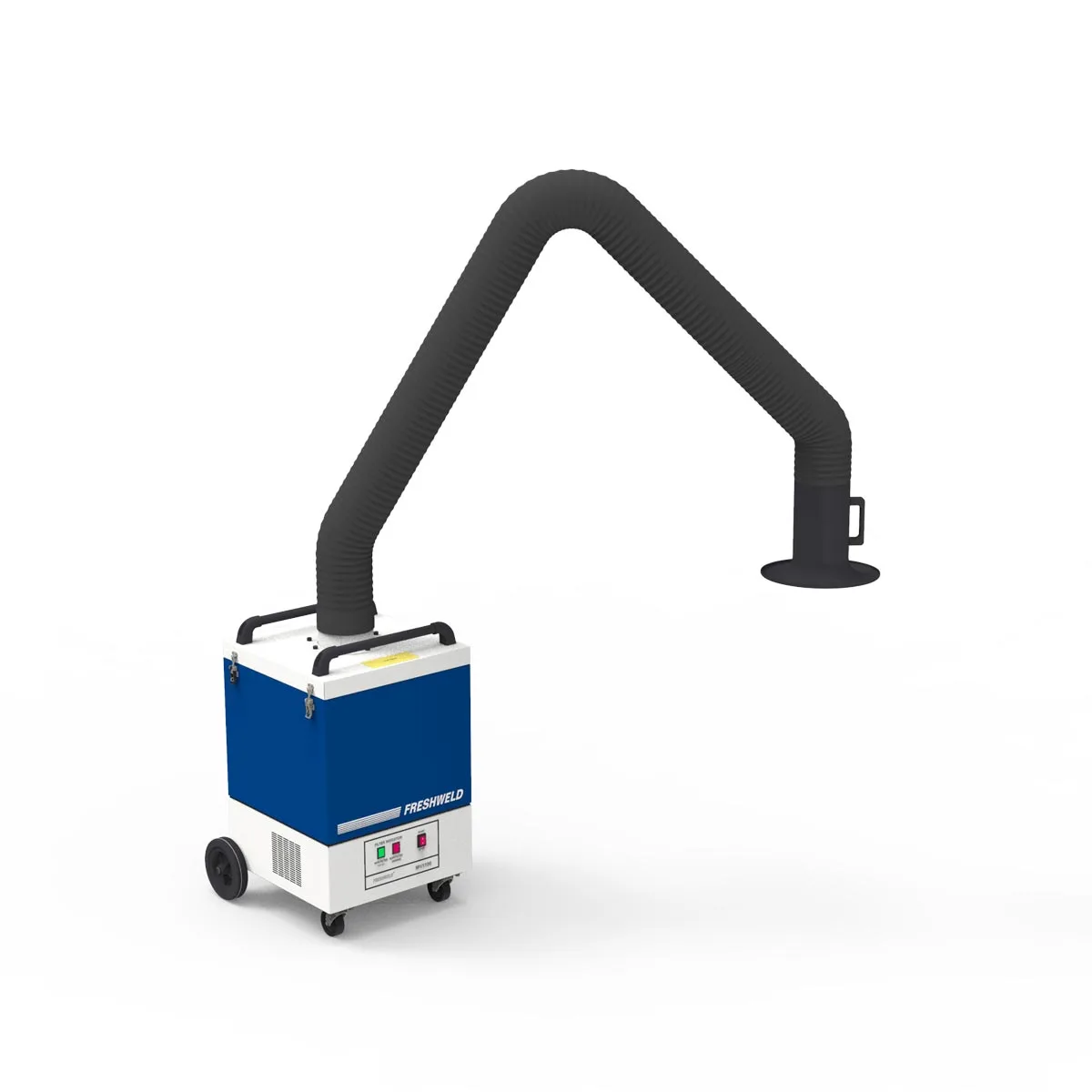

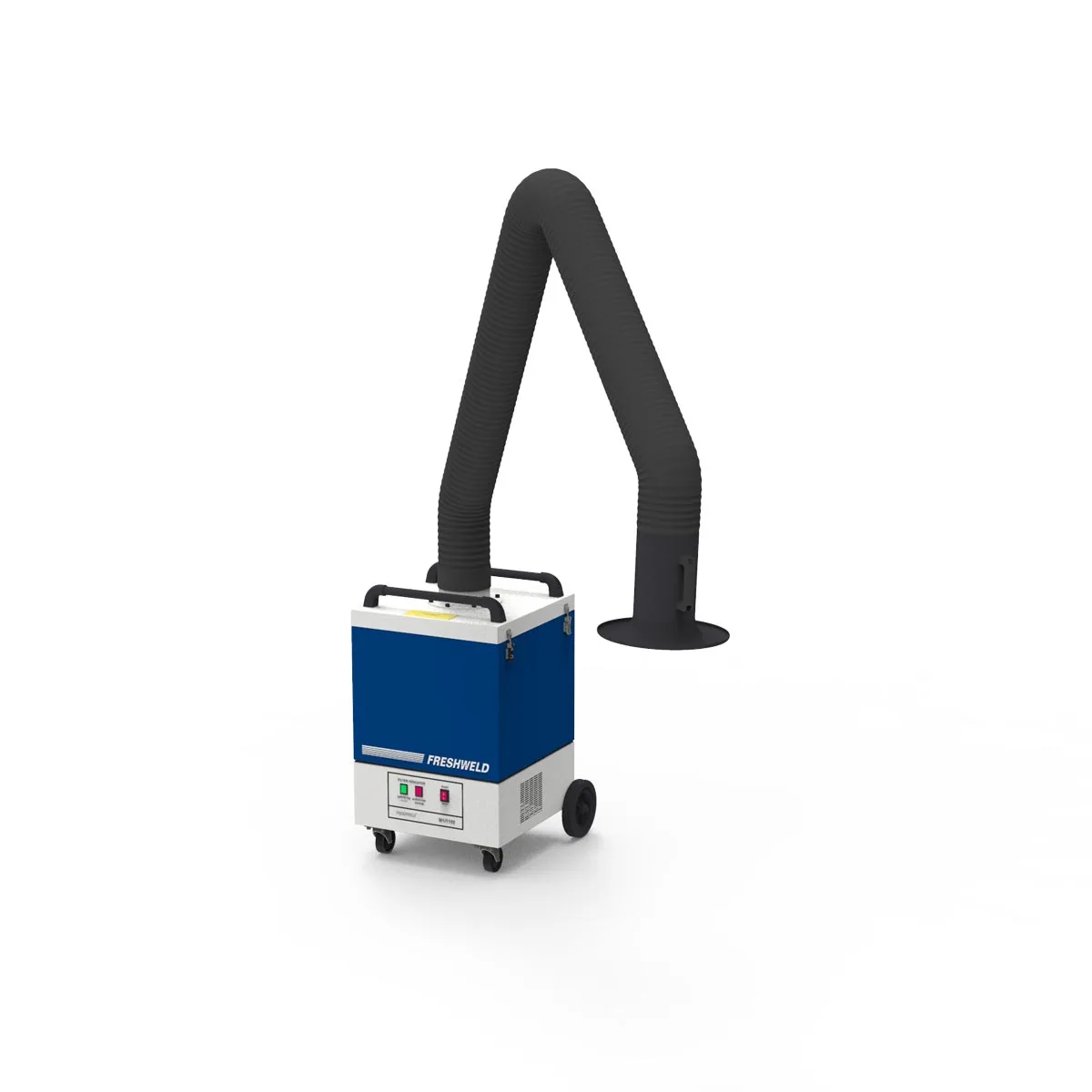

• 101M111002 – With 2-meter arm, 2-stage filter (G1 Mesh + F9)
• 102M111000 – Without arm, 3-stage filter (G1 Mesh + F9 + Activated Carbon)
• 102M111002 – With 2-meter arm, 3-stage filter (G1 Mesh + F9 + Activated Carbon)
• 103M111000 – Without arm, 2-stage filter (G1 Mesh + E12)
• 103M111002 – With 2-meter arm, 2-stage filter (G1 Mesh + E12)
• 104M111000 – Without arm, 3-stage filter (G1 Mesh + E12 + Activated Carbon)
• 104M111002 – With 2-meter arm, 3-stage filter (G1 Mesh + E12 + Activated Carbon)

Key Features and Benefits

• Airflow: 850–1000 m³/h depending on model
• Powerful 0.55kW motor for reliable operation
• Three-stage filtration (G1 + E12/F9 + Activated Carbon) for optimal purification
• Compact size: 480x480x830 mm – fits seamlessly into any workshop
• Customizable: With or without arm, multiple filter configurations

Technical Specifications

Compatible Spare Parts

• F010G00001 – Mesh Filter (G1)
• F030F00001 – Cassette Filter 9m² (F9)
• F040E00001 – EPA Filter 14m² (E12)
• F070AKF001 – Activated Carbon Filter (3.3kg)
• 911TSA0602 – Extraction Arm TSA/602 (2m)
• H000000003 – Hose Ø153mm (2.4m)
• K801301280 – Hood for extraction arm (w/o damper)
• A271304101 – Tensioner Tire Ø202×80
• A310100011 – Start/Stop Switch
• A379900056 – Tensioner Lock Set
• A250001100 – Radial Fan w/ Motor 0.55 kW

Why Choose Freshweld M1/1100?

This mobile unit offers flexible, reliable, and cost-effective fume extraction. It enhances workplace safety while reducing maintenance through its long-lasting filter stages and optional activated carbon module.

Exclusive in Norway

The Freshweld M1/1100 Mobile Fume Extraction Unit is sold exclusively by RAM SVEIS OG BEMANNING AS in Norway – your reliable partner for certified welding safety equipment.
