Description

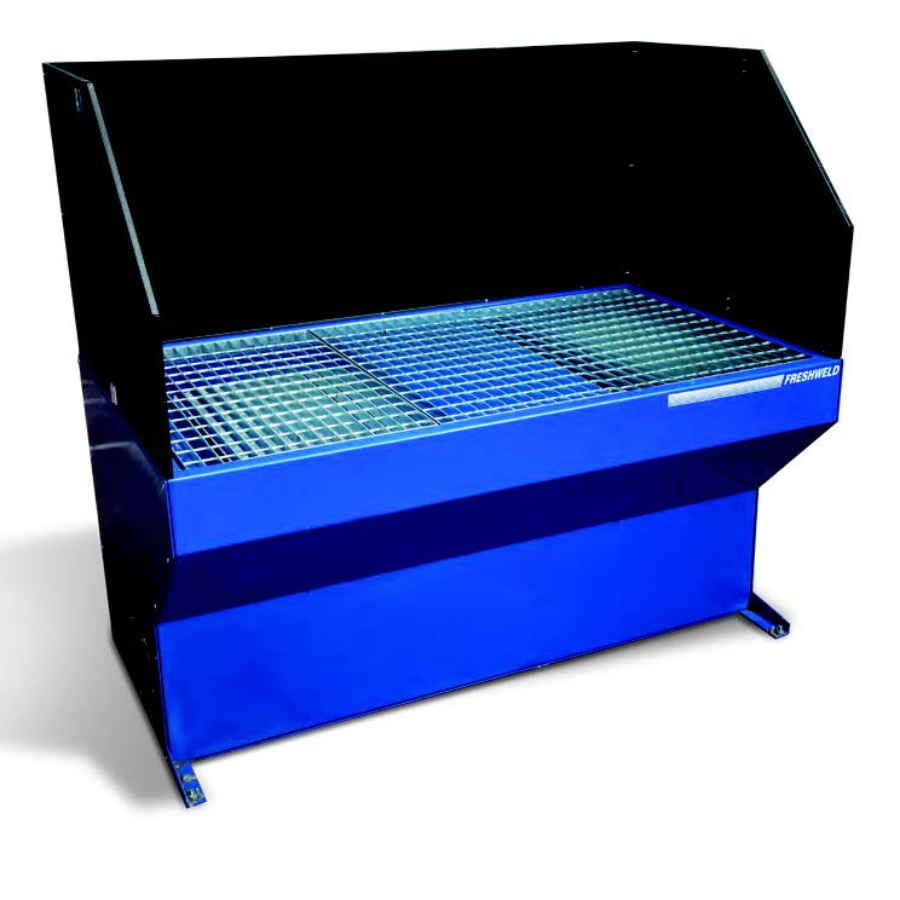

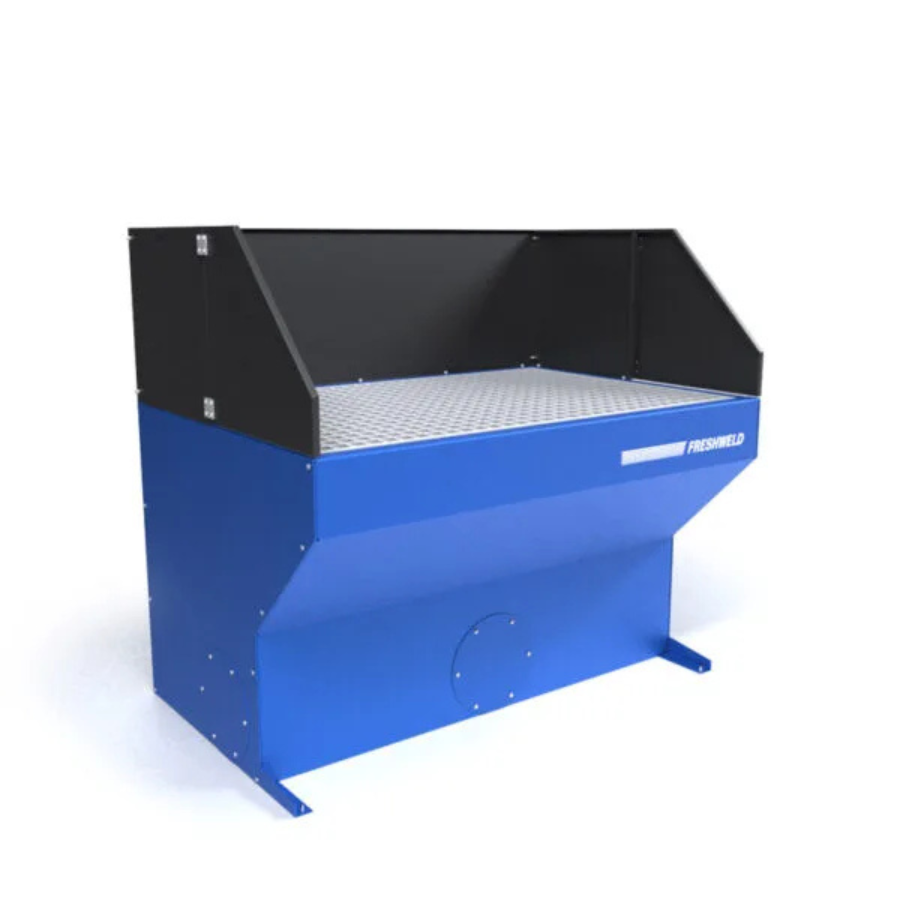

Compact Downdraft Welding Table Without Fan – Central Extraction Ready
The compact downdraft welding table from the FRESHWELD KTM series is designed to work with central extraction systems. It offers a clean and practical solution for welding and grinding operations. This model does not include a fan, allowing you to connect it directly to an external filter or ventilation system.
Moreover, the chrome-coated steel surface provides durability and resistance to wear. The surface remains stable even under heavy use. In addition, a built-in dust tray collects particles and makes cleaning easy. This reduces downtime and supports efficient operation.
Because of its compact size, this table fits perfectly in busy work areas. Therefore, it suits both small workshops and large industrial plants. For example, it is ideal for schools or production lines that already have a centralized dust control system.
Three different sizes are available: 1000mm, 1250mm, and 1500mm. You can also choose between shields with or without visors, in 400mm or 650mm height. As a result, you can customize the setup according to your safety needs.
Product Variants (with FW Codes)
| FW Code | Table Size (mm) | Recommended Airflow | Pressure Drop | Inlet (mm) | Height (mm) | Weight |
|---|---|---|---|---|---|---|
| 321KTM1000 | 850×1000 | 3000 m³/h | 500 Pa | Ø150–200 | 750 | – |
| 321KTM1250 | 850×1200 | 3500 m³/h | 500 Pa | Ø150–200 | 750 | – |
| 321KTM1500 | 850×1500 | 4000 m³/h | 500 Pa | Ø150–200 | 750 | – |
All versions are delivered on a standard pallet and shrink-wrapped for protection.
Optional Shields for Extra Protection
| Shield Type | Height | Models Supported | FW Codes |
|---|---|---|---|
| Without Visor | 400mm | KTM/1000, KTM/1250, KTM/1500 | 331SPR1040, 1240, 1540 |
| Without Visor | 650mm | KTM/1000, KTM/1250, KTM/1500 | 331SPR1065, 1265, 1565 |

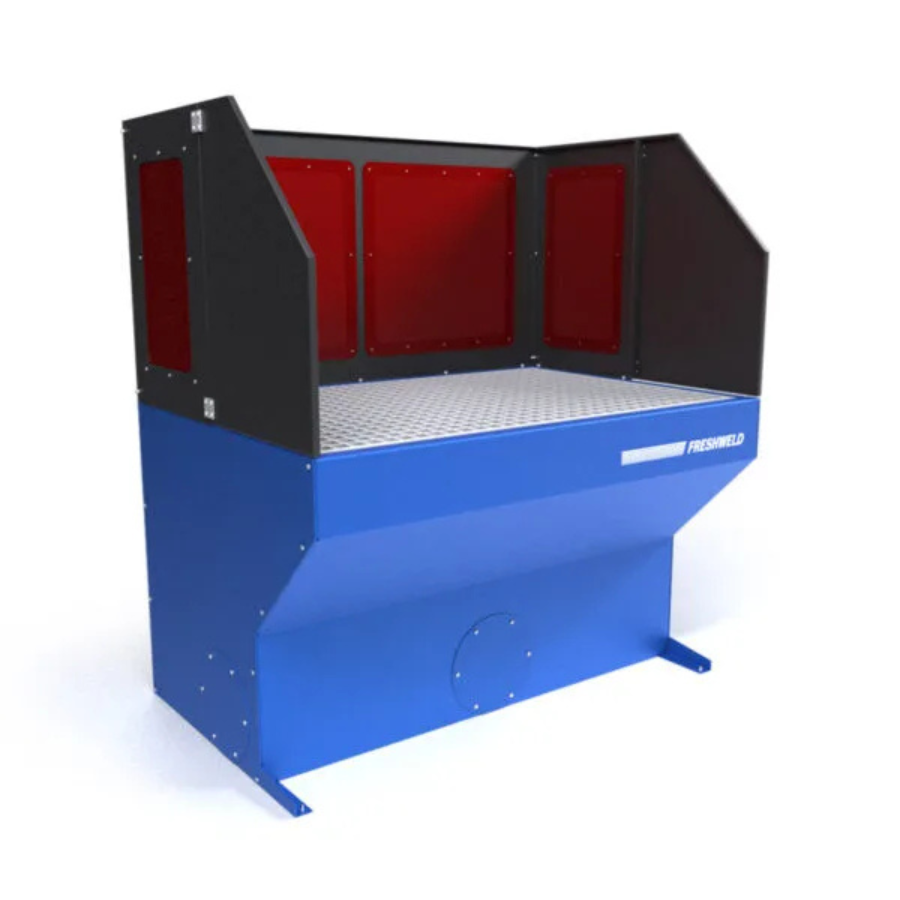

| With Visor | 400mm | KTM/1000, KTM/1250, KTM/1500 | 33SPRP1040, 1240, 1540 |
| With Visor | 650mm | KTM/1000, KTM/1250, KTM/1500 | 33SPRP1065, 1265, 1565 |
Shields reduce glare, sparks, and the spread of fine particles.
Key Features at a Glance
Compact design for welding and grinding
No fan – connect to central filter systems
Dust tray included for fast cleaning
Heavy-duty chrome steel surface
3 table sizes: 1000mm, 1250mm, 1500mm
Multiple shield options for safety
Pallet delivery with shrink-wrapping
Meets EU safety rules and machinery directives
This compact downdraft welding table combines durability, flexibility, and safety. It is ready to support your industrial workflow with minimum setup.
RAM SVEIS OG BEMANNING AS is the exclusive distributor of FRESHWELD in Norway, offering local service, support, and fast delivery.
