Description
CEA CONVEX MOBILE PULSE 205 – Portable Multi-Process Inverter
Exclusive in Norway by RAM SVEIS OG BEMANNING AS
Compact Power for Professional Welding
The CEA CONVEX MOBILE PULSE 205 is a professional MIG/MAG inverter designed for portable and high-precision welding applications in Norway.
Designed and manufactured in Italy, this model combines advanced digital control, light weight, and superior efficiency for daily industrial use.
It supports MIG/MAG, TIG Lift, and MMA welding, all from a single compact power source.
Download convex-mobile-convex-mobile-pulse-data-sheet
Key Features
Multi-process capability: MIG/MAG, MMA, and TIG Lift welding in one machine.
Pulse and Dual Pulse MIG: Cleaner welds, less heat, perfect for aluminium and stainless steel.
Synergic control: Intelligent pre-sets for Fe, CrNi, AlMg, AlSi, and CuSi3 wires.
vision.COLD technology: Low-heat MIG brazing for thin materials and zinc-coated steel.
Energy-saving function: Cooling system runs only when needed.
4-roll wire feeder: Professional-grade mechanism (Ø37 mm).
Up/Down torch control: Adjust welding parameters directly from the torch.
Built-in polarity changeover: Easily switch between gas and gasless wires.
VRD protection: Ensures operator safety on-site.
Auto-diagnosis system: Monitors performance and prevents downtime.
Technical Specifications
| Specification | Value |
|---|---|
| Model | CEA CONVEX MOBILE PULSE 205 |
| Power Supply | 1-phase 230 V ±15%, 50/60 Hz |
| Current Range | 10 – 200 A |
| Max Output Current | 200 A |
| Duty Cycle (40 °C) | 105 A @100% • 140 A @60% • 200 A @25% |
| Open Circuit Voltage | 45 V |
| Efficiency | 0.84 |
| Power Factor (cos φ) | 0.95 / 0.99 |
| Wire Diameter Range | 0.6 – 1.2 mm |
| Coil Size | Ø 300 mm |
| Protection Class | IP 23S |
| Dimensions (L×W×H) | 650 × 300 × 388 mm |
| Weight | 20 kg |
| Standards | EN 60974-1 • EN 60974-5 • EN 60974-10 |
Standard Equipment
Each CONVEX MOBILE PULSE 205 includes:

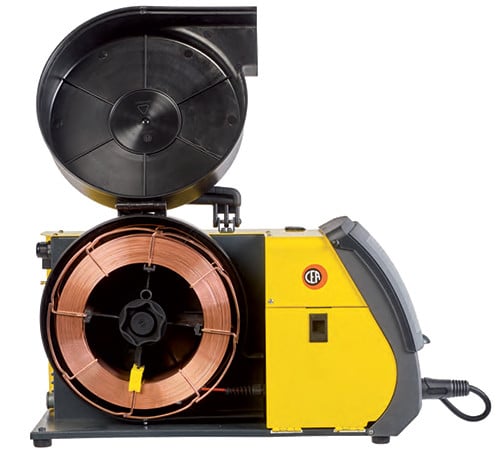

Complete 4-roll wire feeding system
vision.COLD process pre-installed
Polarity switch for gas/gasless wires
VRD voltage reduction device
Energy-saving cooling control
Digital synergic display
Crater control and auto-diagnosis functions
Applications
The CEA CONVEX MOBILE PULSE 205 MIG/MAG inverter is perfect for:
Automotive repair and car body work
Maintenance and service operations
Light steel and aluminium fabrication
Workshops and training centers
On-site construction or installation
Its light weight and digital precision make it one of the most efficient portable welding machines in Norway.
Advantages
The CONVEX MOBILE PULSE 205 delivers the perfect balance of portability, precision, and energy efficiency.
Dual Pulse and synergic control reduce spatter, heat input, and rework.
Its smooth arc stability ensures premium results even on 230 V power outlets or portable generators.
Exclusive Distribution in Norway
The CEA CONVEX MOBILE PULSE 205 is distributed exclusively by RAM SVEIS OG BEMANNING AS.
All units are genuine Italian-made CEA products, delivered with warranty, certified service, and Norwegian technical support.
📍 Address: Linnegrøvan 27, 4640 Søgne, Kristiansand
📞 Phone: +47 468 43 758 / +47 968 87 890
📩 Email: post@rammultiinvest.no
🌐 Website: www.rammultiinvest.no
Disclaimer – Product Information
All technical data and descriptions on this page are provided for informational purposes only.
While RAM SVEIS OG BEMANNING AS strives to maintain accuracy, minor discrepancies may occur in specifications, accessories, or colours depending on production updates from CEA S.p.A..
Equipment included or shown in images may vary from the standard configuration.
For exact details, please contact our sales department before purchase.
