Description

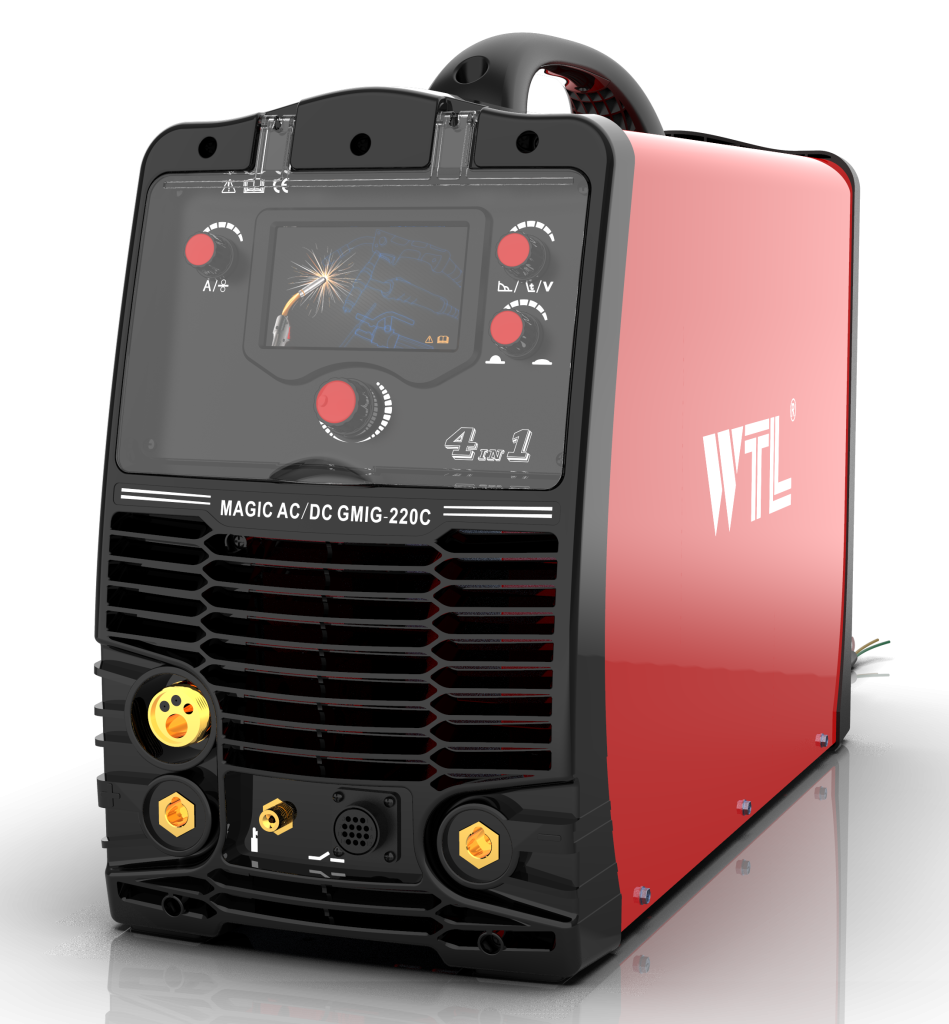

MIG Welder MAGIC ACDC GMIG 220C – 4-in-1 Professional Synergic Inverter (MIG/TIG AC-DC/MMA)
The MAGIC ACDC GMIG 220C is a 4-in-1 welding machine for the Norwegian market, combining MIG, MMA, AC/DC TIG in a single synergic inverter system. With Bluetooth control, large LCD, and precise welding modes, it is ideal for both workshops and industrial projects in Norway.
Features
4-in-1 Multi-process: Supports MIG, Stick (MMA), AC TIG, and DC TIG – one machine for every job.
Fully adjustable parameters: Includes AC balance & frequency (TIG), DC pulse width, up/down slope time and more – ideal for precision welding.
Auto torch detection: Switch seamlessly between MIG and TIG torches without disconnecting – the machine detects and configures automatically.
Remote & automated welding: Compatible with potentiometer TIG torch, 4-button MIG remote, foot pedal, or spool gun for precise control.
5” Color LCD Display: All parameters – current, voltage, wire feed speed – are easy to monitor and adjust. Synergic mode simplifies setup for all materials.
HF Arc ignition: High-frequency, non-contact start eliminates contamination and ensures easy arc initiation – especially for aluminum TIG.
Memory storage: 9 channels for storing custom welding setups – no need to reconfigure each time.
Selectable wire drive roll: Choose between single and dual drive rollers based on your cable feeder.
Bluetooth + App Control: Adjust and monitor welding processes remotely via smartphone in real-time.
OLED MIG torch display: Advanced Parweld MIG torch with onboard OLED screen for live control of wire speed and voltage.
Download tehnical informations MAGIC ACDC AGMIG 220C
Technical Parameters
| Model | MAGIC ACDC GMIG 220C |
|---|---|
| Weldable Metals | Aluminum, Stainless Steel, Mild Steel |
| Input Voltage | 110/115/120V – 220/230/240V |
| Phase / Frequency | 1-Phase / 50–60Hz |
| Current Type | AC / DC |
| Open Circuit Voltage | 45V DC (Controlled) |
| Cable Feed Speed | 3 – 25 m/min (120–1000 IPM) |
| Output Type | CC / CV |
| Dimensions (L×W×H) | 660 × 275 × 500 mm |
| Weight | 30 kg (dual drive, 15kg spool) |
| Portability | Carry handle (cart optional) |
| Warranty | 1 year |
Accessories
Standard Package:
Adapter plugs: 120V and 240V
MIG Torch (MIG 24, 3M, 25 mm² – Parweld)
TIG Torch (TIG-26 air-cooled, 4M – Parweld)
Welding cable with electrode holder – 300A, 25 mm², 3m, 35–70 mm² connector
Earth cable with ground clamp – 300A, 25 mm², 3m, 35–70 mm² connector
Gas hose – 4m, Ø5mm × 8mm
Hose clamp – Ø5
Drive roll for .024″ (0.6mm) / .030–.035″ (0.8–0.9mm) solid and flux-cored wires
Carton packaging
Optional Accessories:
4-button MIG remote torch (MB 25, 4m – Parweld)
UP/DOWN TIG torch (TIG-26 air-cooled, 4m – Parweld)
Potentiometer TIG torch (TIG-26 air-cooled, 4m – Parweld)
Spool gun QLBF-200Ⅲ (0.6–1.0mm, 3m)
Foot pedal control
OLED MIG torch
Water cooler
Single/Double drive systems
Water pipe
Argon & CO₂ gas regulators
Color packaging
Transport cart
Exclusive Distribution in Norway
If you’re looking for a reliable, high-performance 4-in-1 welding machine in Norway, MAGIC ACDC GMIG 220C offers unmatched value through RAM SVEIS OG BEMANNING.
The MAGIC ACDC GMIG 220C is sold exclusively in Norway by RAM SVEIS OG BEMANNING AS, the official distributor of WTL welding equipment for the Norwegian market.
As a trusted industrial partner, RAM SVEIS offers direct access to professional-grade welding equipment optimized for Norwegian workshops, shipyards, fabrication facilities, and construction sites. Our technical team provides local support, spare parts, and fast delivery from our warehouse in Kristiansand.
We serve professionals across:
Kristiansand, Oslo, Bergen, Stavanger, Ålesund, Tromsø and all over Norway.
📍 RAM SVEIS OG BEMANNING AS
Address: Linnegrøvan 27, 4640 Søgne, Kristiansand
📞 Phone: +47 468 43 758 | +47 968 87 890
📩 Email: post@rammultiinvest.no
🌐 Website: www.rammultiinvest.no
